Bosch 52cm Undermount Integrated Rangehood - Black (Series 6)

Bosch 52cm Undermount Integrated Rangehood - Black (Series 6)

Model:

DLN56AC60A

Ipn:

868259

1 3
Bosch
Bosch 52cm Undermount Integrated Rangehood - Black (Series 6)

Bosch 52cm Undermount Integrated Rangehood - Black (Series 6)

Model:

DLN56AC60A

Ipn:

868259

Warranty
$1,049.00
Was $0.00 $1,049.00
Taxes included.

5 Year Warranty on Bosch Appliances

Buy a selected Series 6 or 8 Bosch appliance and register to receive a 5-year manufacturer’s warranty. T&C's apply. Find out more

Offer ends Sun, May 31, 2026

View full details
You have not set a location
Overview
Delivery & Returns
Payment Options
Back up plans

Overview

description

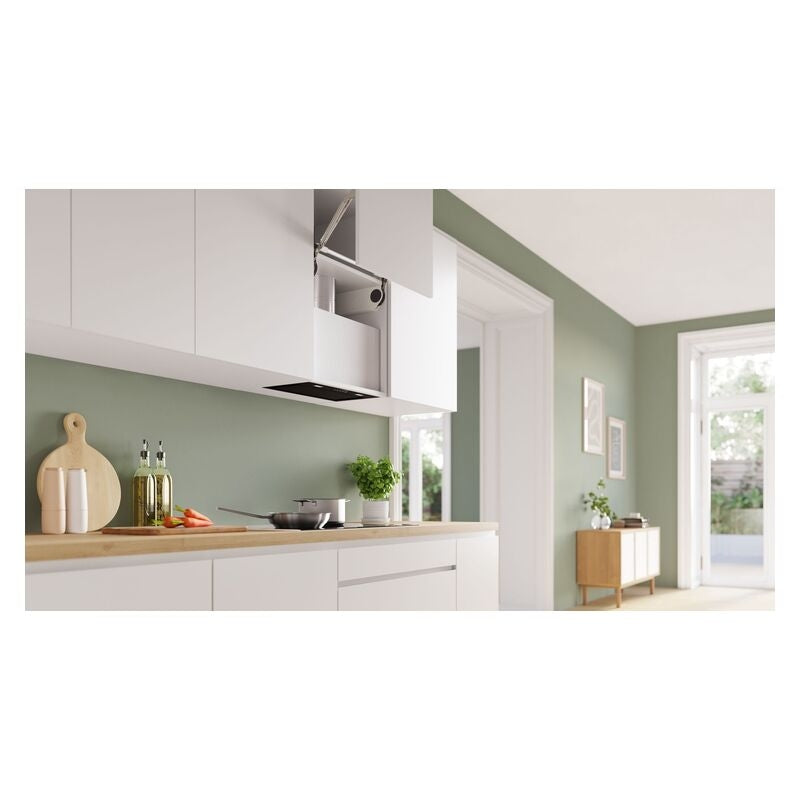

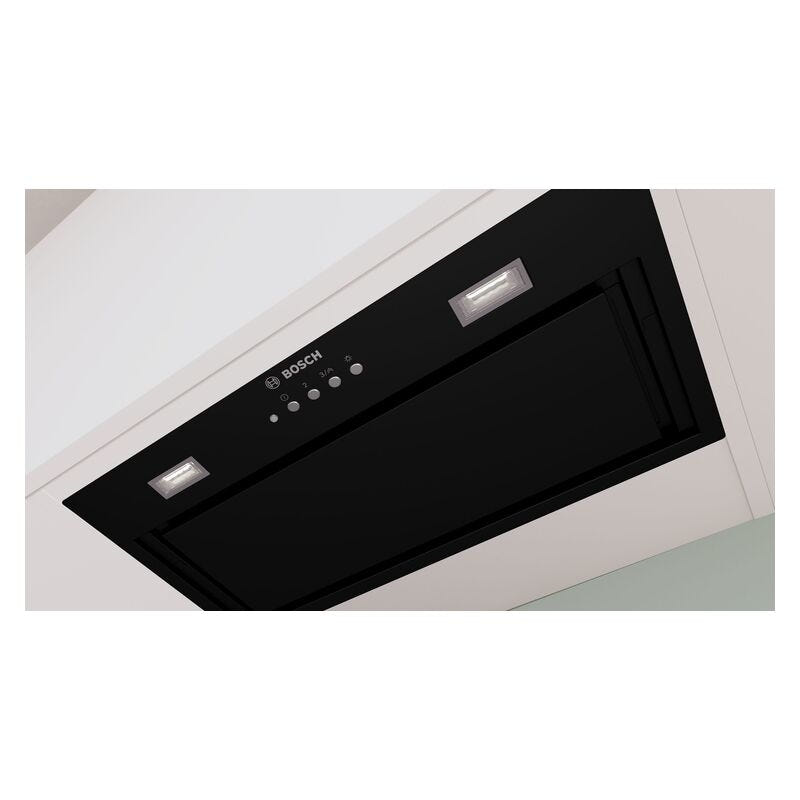

Designed for efficiency and ease of use, the Bosch 52cm Series 6 Integrated Rangehood delivers powerful ventilation in a sleek, built-in design. Its airflow of up to 645 m³/h effectively clears cooking odours, smoke, and grease, keeping your kitchen fresh. The electronic push-button controls and electronic display make it simple to adjust settings, while the 66 dB noise level at max speed ensures a quieter cooking experience. Built to blend seamlessly into your cabinetry, this rangehood provides effective extraction without disrupting the look of your kitchen. Whether you're frying, roasting, or simmering, this Bosch rangehood offers a perfect balance of style, power, and convenience.

specifications

  • Brand
    Bosch
  • IPN
    868259
  • Model
    DLN56AC60A
  • Manufacturer's Warranty
    2 Years
  • Size
    52CM
  • Width
    520 mm
  • Height
    345 mm
  • Depth
    282 mm
  • Colour/Finish
    INTEGRATED (OWN CABINETRY)
  • SIZE (CM)
    60 CM
  • Colour
    Black
  • Installation typology
    Built-in
  • Operating Mode
    Convertible
  • Total power of the motors
    250 W
  • Number of power settings
    3-stages + intensive setting
  • Max. air extraction
    570 m³/h
  • Boost position air extraction
    645 m³/h
  • Sound power at max. speed (2010/30/EC)
    66 dB
  • Sound power boost (2010/30/EC)
    68 dB
  • Max. air recirculation
    560 m³/h
  • Boost position output recirculating
    628 m³/h
  • Sound power at max. speed (recirculation)
    69 dB
  • Sound power boost (recirculation)
    72 dB
  • Grease filter material
    Washable aluminium
  • Energy efficiency rating
    B
  • Total annual energy consumption
    75.2 kWh/year
  • Included user manuals
    [EN]
  • Minimum distance above an electric cooktop (EU)
    600 mm
  • Minimum distance above a gas cooktop
    650 mm
  • Diameter of air outlet
    120 / 150 mm
  • No-return airflow flap
    Yes
  • Length electrical supply cord
    150.0 cm
  • Handle bar
    Not applicable
  • Appliance height exhaust air max
    345 mm
  • Appliance height exhaust air min
    345 mm
  • Appliance height recirculating max
    345 mm
  • Appliance height recirculating min
    345 mm
  • PerfectAir sensor
    No
  • EcoSilence Drive motor - efficient and extra silent
    No
  • Extremely silent appliances
    No
  • Clean filter reminder
    No
  • Boost mode
    Yes
  • Delay Shut off modes
    No
  • Remote control
    No
  • Type of lamps used
    LED
  • Number of lights
    2
  • Total power of the lamps
    2 W
  • Total luminance
    400 lm
  • Color temperature
    Cold white (4.000 K)
  • Illumination type softlight
    No
  • Light colour customisable by Home Connect
    No
  • Ambient light
    No
  • Home Connect
    No
  • Cooktop-based hood control
    No
  • Smart Hood Automatic
    No

features

  • 570 m³/h max air extraction
  • 3-stages + intensive setting
  • Seamless integration
  • LED Illumination
  • Push button control
  • Metal Grease Filter
  • Intensive speed setting with reset
