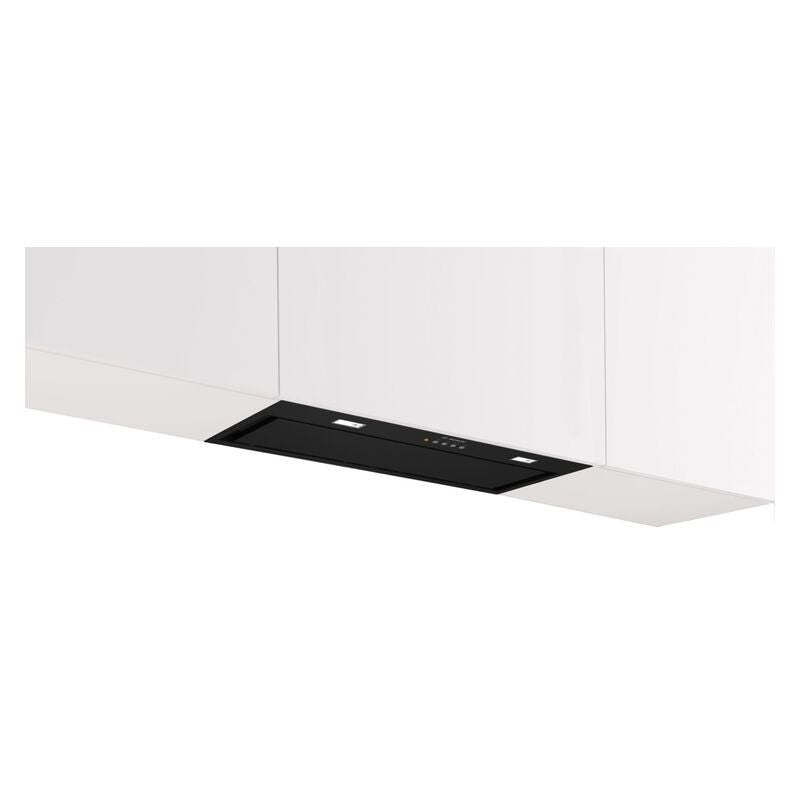

Bosch 70cm Undermount Integrated Rangehood - (Series 6)

Bosch 70cm Undermount Integrated Rangehood - (Series 6)

Model:

DLN77AC60A

Ipn:

868260

1 3
Bosch
Bosch 70cm Undermount Integrated Rangehood - (Series 6)

Bosch 70cm Undermount Integrated Rangehood - (Series 6)

Model:

DLN77AC60A

Ipn:

868260

Warranty
$1,499.00
Was $0.00 $1,499.00
Taxes included.

5 Year Warranty on Bosch Appliances

Buy a selected Series 6 or 8 Bosch appliance and register to receive a 5-year manufacturer’s warranty. T&C's apply. Find out more

Offer ends Sun, May 31, 2026

View full details
You have not set a location
Overview
Delivery & Returns
Payment Options
Back up plans

Overview

description

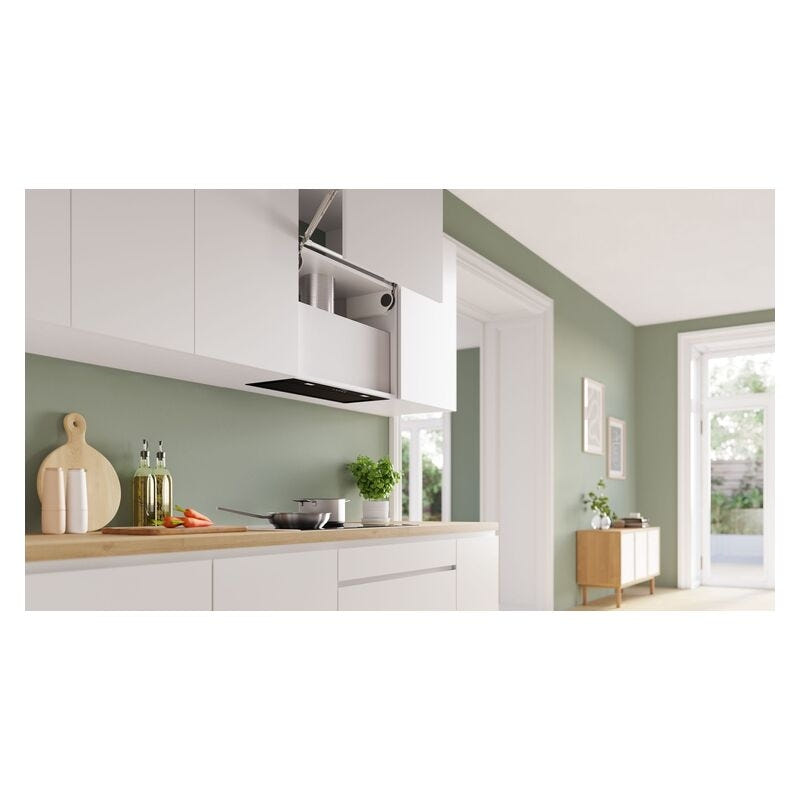

Designed for efficiency and convenience, the Bosch 70cm Series 6 Integrated Rangehood ensures powerful extraction while blending seamlessly into your kitchen. With an airflow capacity of up to 730 m³/h, it quickly removes steam, smoke, and odours, keeping your space fresh. The electronic push-button controls and electronic display allow for precise fan speed adjustments, while its low noise level of 63 dB at max speed ensures a quieter cooking experience. Built for seamless integration, this rangehood fits effortlessly into your cabinetry, providing a clean and modern aesthetic. Whether you're frying, grilling, or simmering, this Bosch rangehood delivers strong performance and smart functionality, making it an essential kitchen upgrade.

specifications

  • Brand
    Bosch
  • IPN
    868260
  • Model
    DLN77AC60A
  • Manufacturer's Warranty
    2 Years
  • Size
    70CM
  • Width
    700 mm
  • Height
    345 mm
  • Depth
    282 mm
  • Colour/Finish
    INTEGRATED (OWN CABINETRY)
  • SIZE (CM)
    70 CM
  • Colour
    Black
  • Installation typology
    Built-in
  • Operating Mode
    Convertible
  • Total power of the motors
    250 W
  • Number of power settings
    3-stages + intensive setting
  • Max. air extraction
    595 m³/h
  • Boost position air extraction
    730 m³/h
  • Sound power at max. speed (2010/30/EC)
    63 dB
  • Sound power boost (2010/30/EC)
    68 dB
  • Max. air recirculation
    580 m³/h
  • Boost position output recirculating
    705 m³/h
  • Sound power at max. speed (recirculation)
    70 dB
  • Sound power boost (recirculation)
    73 dB
  • Grease filter material
    Washable aluminium
  • Energy efficiency rating
    A
  • Total annual energy consumption
    55.5 kWh/year
  • Included user manuals
    [EN]
  • Minimum distance above an electric cooktop (EU)
    600 mm
  • Minimum distance above a gas cooktop
    650 mm
  • Diameter of air outlet
    120 / 150 mm
  • No-return airflow flap
    Yes
  • Length electrical supply cord
    150.0 cm
  • Handle bar
    Not applicable
  • Appliance height exhaust air max
    345 mm
  • Appliance height exhaust air min
    345 mm
  • Appliance height recirculating max
    345 mm
  • Appliance height recirculating min
    345 mm
  • PerfectAir sensor
    No
  • EcoSilence Drive motor - efficient and extra silent
    No
  • Extremely silent appliances
    No
  • Clean filter reminder
    No
  • Boost mode
    Yes
  • Delay Shut off modes
    No
  • Remote control
    No
  • Type of lamps used
    LED
  • Number of lights
    2
  • Total power of the lamps
    2 W
  • Total luminance
    400 lm
  • Color temperature
    Cold white (4.000 K)
  • Illumination type softlight
    No
  • Light colour customisable by Home Connect
    No
  • Ambient light
    No
  • Home Connect
    No
  • Cooktop-based hood control
    No
  • Smart Hood Automatic
    No

features

  • 595 m³/h max air extraction
  • 3-stages + intensive setting
  • Seamless integration
  • LED Illumination

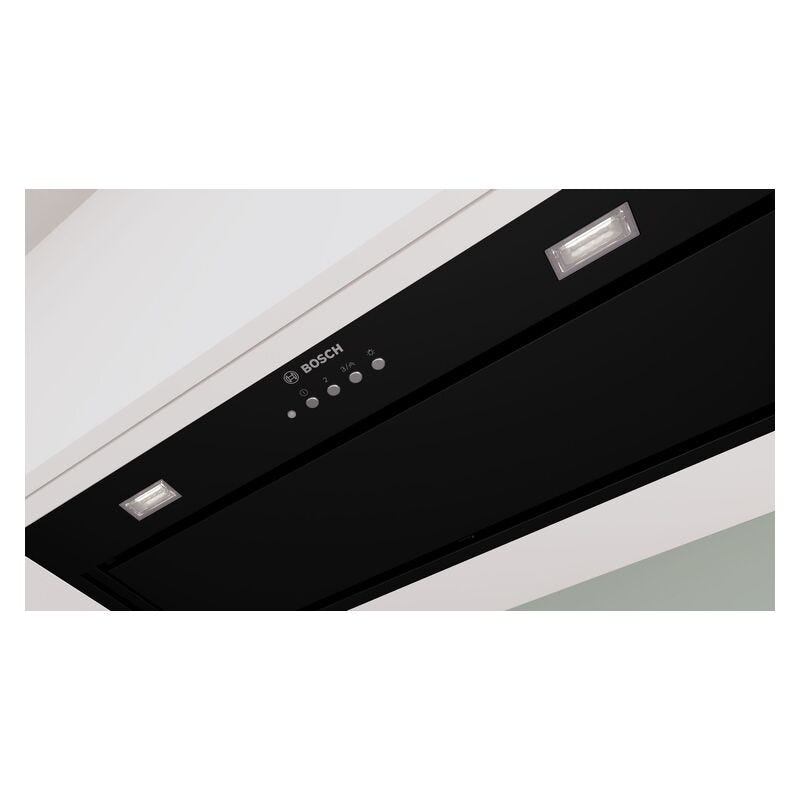

  • Push button control
  • Metal Grease Filter
  • Intensive speed setting with reset
