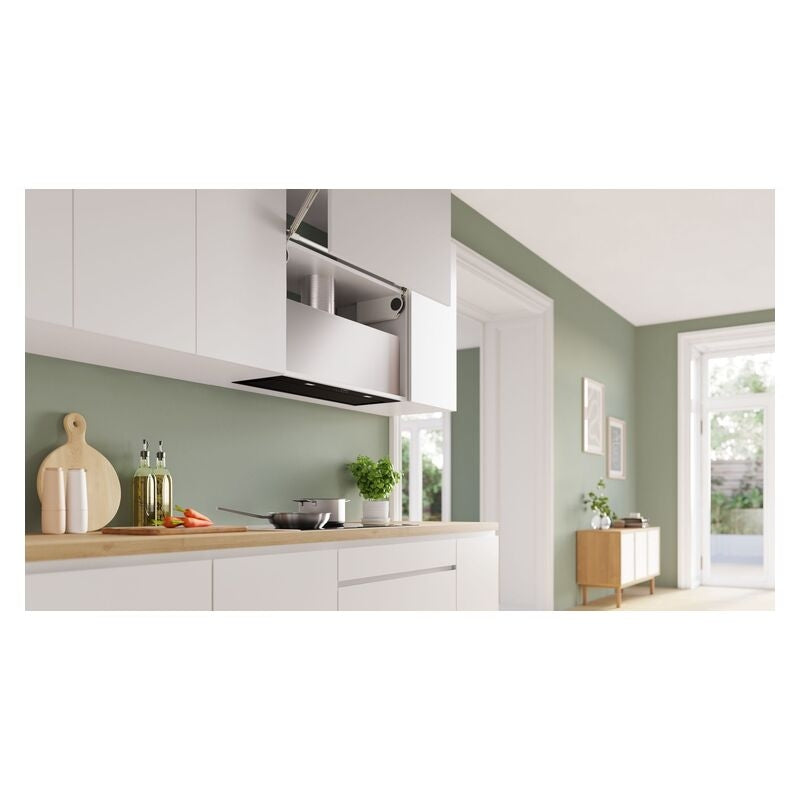

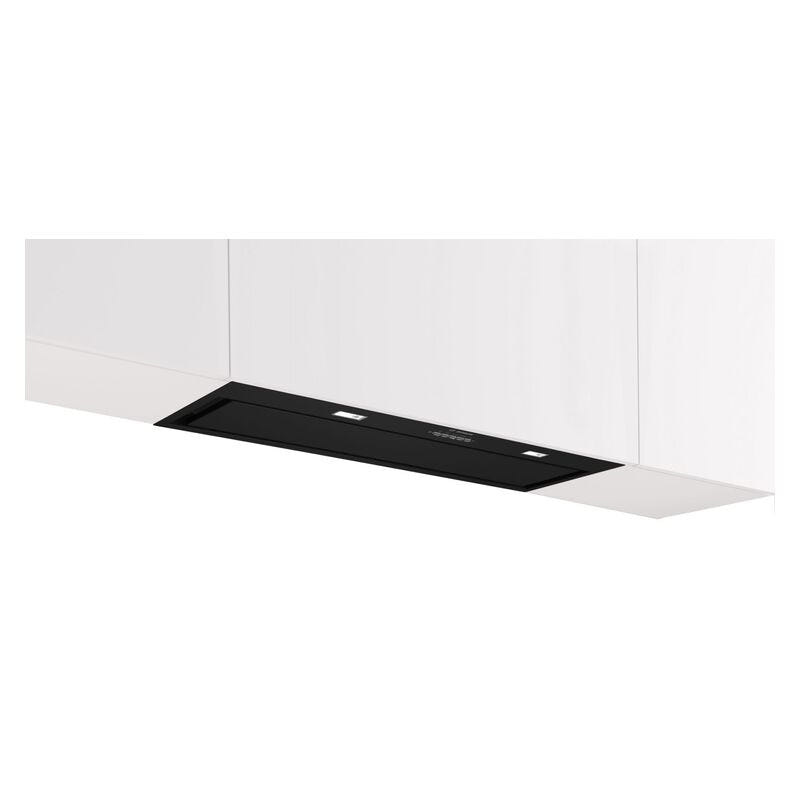

Bosch 86cm Undermount Integrated Rangehood - Black (Series 8)

Bosch 86cm Undermount Integrated Rangehood - Black (Series 8)

Model:

DLN88PC60A

Ipn:

868261

1 3
Bosch
Bosch 86cm Undermount Integrated Rangehood - Black (Series 8)

Bosch 86cm Undermount Integrated Rangehood - Black (Series 8)

Model:

DLN88PC60A

Ipn:

868261

$1,299.00
Was $0.00 $1,299.00
Taxes included.
View full details
You have not set a location
Overview
Delivery & Returns
Payment Options
Back up plans

Overview

description

The Bosch 86cm Series 8 Integrated Rangehood is the perfect blend of power, convenience, and sleek design, making it a standout addition to any kitchen. With an airflow rate of up to 820 m³/h, it effectively eliminates smoke, odours, and grease, ensuring a cleaner and more comfortable cooking space. The intuitive electronic push-button controls and digital display make it easy to adjust settings, while the quiet operation—only 61 dB at maximum speed—ensures a peaceful kitchen environment. Designed to be seamlessly integrated into your cabinetry, this rangehood maintains a minimalist aesthetic without compromising on performance. Whether you're frying, grilling, or simmering, this Bosch rangehood delivers powerful extraction to keep your kitchen fresh and inviting.

specifications

  • Brand
    Bosch
  • IPN
    868261
  • Model
    DLN88PC60A
  • Manufacturer's Warranty
    2 Years
  • Size
    86CM
  • Width
    860 mm
  • Height
    345 mm
  • Depth
    282 mm
  • Colour/Finish
    INTEGRATED (OWN CABINETRY)
  • SIZE (CM)
    86 CM
  • Colour
    Black
  • Installation typology
    Built-in
  • Operating Mode
    Convertible
  • Total power of the motors
    170 W
  • Number of power settings
    3-stages + intensive setting
  • Max. air extraction
    595 m³/h
  • Boost position air extraction
    820 m³/h
  • Sound power at max. speed (2010/30/EC)
    61 dB
  • Sound power boost (2010/30/EC)
    68 dB
  • Max. air recirculation
    570 m³/h
  • Boost position output recirculating
    780 m³/h
  • Sound power at max. speed (recirculation)
    67 dB
  • Sound power boost (recirculation)
    74 dB
  • Grease filter material
    Washable aluminium
  • Energy efficiency rating
    A++
  • Total annual energy consumption
    31.2 kWh/year
  • Included user manuals
    [EN]
  • Minimum distance above an electric cooktop (EU)
    600 mm
  • Minimum distance above a gas cooktop
    650 mm
  • Diameter of air outlet
    120 / 150 mm
  • No-return airflow flap
    Yes
  • Length electrical supply cord
    150.0 cm
  • Handle bar
    Not applicable
  • Appliance height exhaust air max
    345 mm
  • Appliance height exhaust air min
    345 mm
  • Appliance height recirculating max
    345 mm
  • Appliance height recirculating min
    345 mm
  • PerfectAir sensor
    No
  • EcoSilence Drive motor - efficient and extra silent
    Yes
  • Extremely silent appliance
    No
  • Clean filter reminder
    Yes
  • Boost mode
    Yes
  • Delay Shut off modes
    Yes
  • Remote control
    No
  • Type of lamps used
    LED
  • Number of lights
    2
  • Total power of the lamps
    2 W
  • Total luminance
    250 lm
  • Color temperature
    Cold white (4.000 K)
  • Illumination type softlight
    Yes
  • Light colour customisable by Home Connect
    No
  • Ambient light
    No
  • Home Connect
    No
  • Cooktop-based hood control
    No
  • Smart Hood Automatic
    No

features

  • 595 m³/h max air extraction
  • 3-stages + intensive setting
  • EcoSilence Drive
  • Intensive speed setting with reset
  • Seamless integration
  • LED Illumination
  • Push button control
