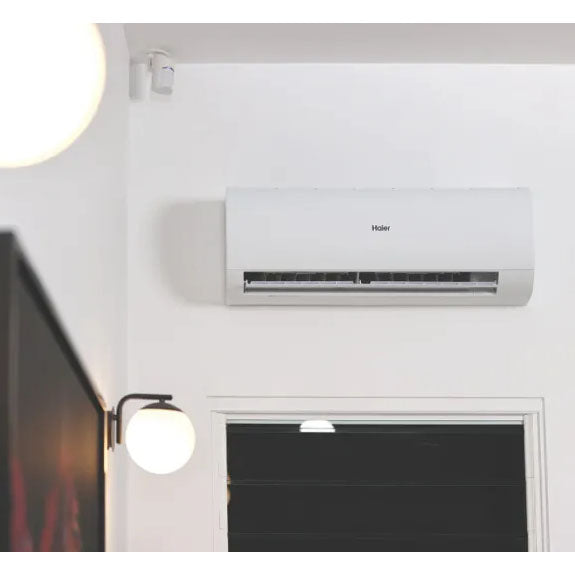

Haier Pinnacle 7.1kW/7.5kW Split Reverse Inverter Air Conditioner

Haier Pinnacle 7.1kW/7.5kW Split Reverse Inverter Air Conditioner

Model:

AS71PDDHRA-SET

Ipn:

825674

1 4
Haier
Save 16%
Haier Pinnacle 7.1kW/7.5kW Split Reverse Inverter Air Conditioner

Haier Pinnacle 7.1kW/7.5kW Split Reverse Inverter Air Conditioner

Model:

AS71PDDHRA-SET

Ipn:

825674

$1,599.00
Was $1,899.00 $1,599.00
Taxes included.
View full details
You have not set a location
Overview
Delivery & Returns
Payment Options
Back up plans

Overview

description

The Haier Pinnacle 7.1kW/7.5kW Split Reverse Inverter Air Conditioner delivers high-capacity comfort with smart control and enhanced air purification. Ready to use straight out of the box, it includes built-in Wi-Fi and supports Google and Alexa voice commands for effortless operation. Offering 7.0kW cooling and up to 7.6kW heating, it is well suited to larger rooms and demanding environments. UV sterilisation technology helps improve indoor air quality by reducing airborne bacteria and viruses, while self-cleaning functions for both indoor and outdoor units support long-term performance. With a powerful 18-metre air throw and Turbo Cool mode for rapid temperature adjustment, this air conditioner provides efficient, intelligent comfort for modern homes.

specifications

  • Brand
    Haier
  • IPN
    825674
  • Model
    AS71PDDHRA-SET
  • Manufacturer's Warranty
    5 Years
  • Size
    7.0/7.6kW
  • Width
    970 mm
  • Height
    320 mm
  • Depth
    220 mm
  • Cooling capacity (kW)
    7.0kW
  • Heating capacity (kW)
    7.6kW
  • COP
    3.35
  • EER
    3.30
  • HSPF-RES (Hot/Average/Cold)
    4.090 / 3.627 / 3.196
  • HSPFCOM (Hot/Average/Cold)
    4.097 / 3.818 / 3.445

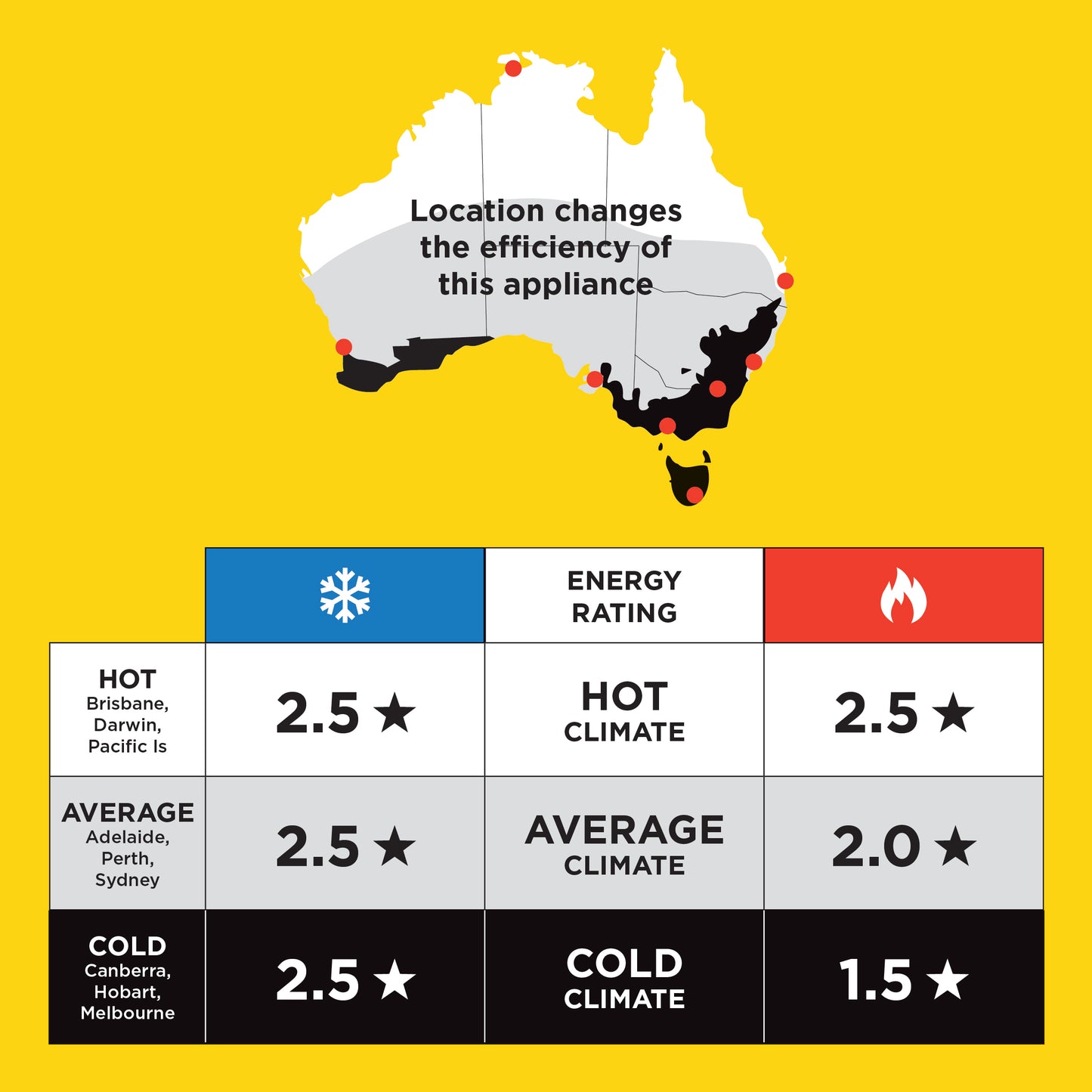

  • Star-Cool (Hot/Average/Cold)
    2.5 / 2.5 / 2.5
  • Star-Heat (Hot/Average/Cold)
    2.5 / 2.0 / 1.5
  • TCSPF-COM (Hot/Average/Cold)
    4.706 / 4.816 / 5.148
  • TCSPF-RES (Hot/Average/Cold)
    4.419 / 4.196 / 4.367
  • 24 Hour timer
    Yes
  • 56°C Steri-clean
    Yes
  • Anti-bacterial silver ion coating
    Yes
  • Auto restart
    Yes
  • Auto swing-up and down
    Yes
  • Blue fin coils
    Yes
  • Built-in Wi-Fi smart control
    Yes
  • Concealed LED display
    Yes
  • DC inverter
    Yes
  • DRED (Demand Response) ready
    Yes
  • Dry mode
    Yes
  • Intelligent air
    Yes
  • Internal and external heat exchanger self-cleaning
    Yes
  • Long distance air supply
    18
  • MEPS approved
    Yes
  • Refrigerant factory charge
    1.1
  • Self diagnostics
    Yes
  • Standard controller
    wireless
  • UV Protect
    UVC sterilisation
  • Voice control via Google Home or Amazon Alexa
    Yes
  • Indoor unit model
    AS71PDDHRA
  • Liquid line
    Pipe size 6.35
  • Maximum pipe run
    20
  • Outdoor unit model
    1U71WADFRA
  • Suction line
    Pipe size 12.7
  • DC inverter
    Yes
  • R32 Refrigerant
    Yes
  • Sound power SWL (outdoor)
    67dBA
  • Sound pressure SPL (indoor)
    48 / 44 / 38 / 33dBA
  • Sound pressure SPL (outdoor)
    48dBA
  • Power phase
    1.0
  • Supply frequency
    50Hz
  • Supply voltage
    230V

features

  • UV Protect to kill bacteria & viruses
  • Healthier air
  • Voice and remote control
  • Air flow to every corner
  • Easy installation and maintenance
  • Sleep mode
  • Turbo mode
