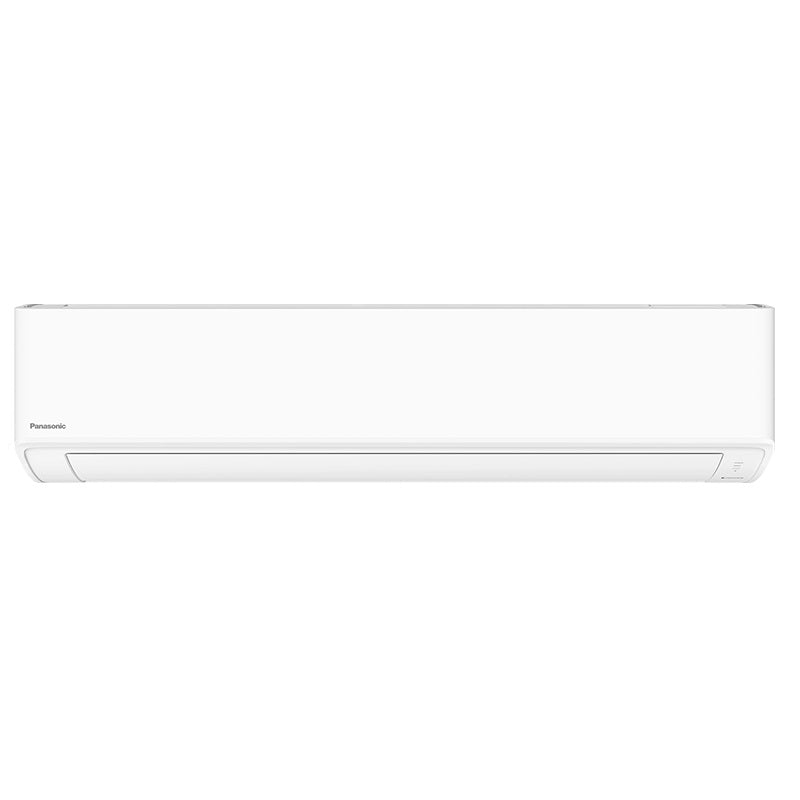

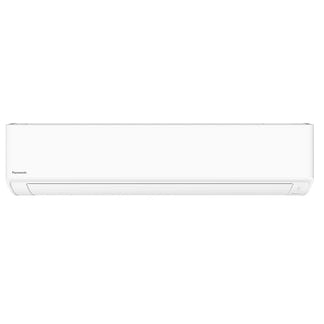

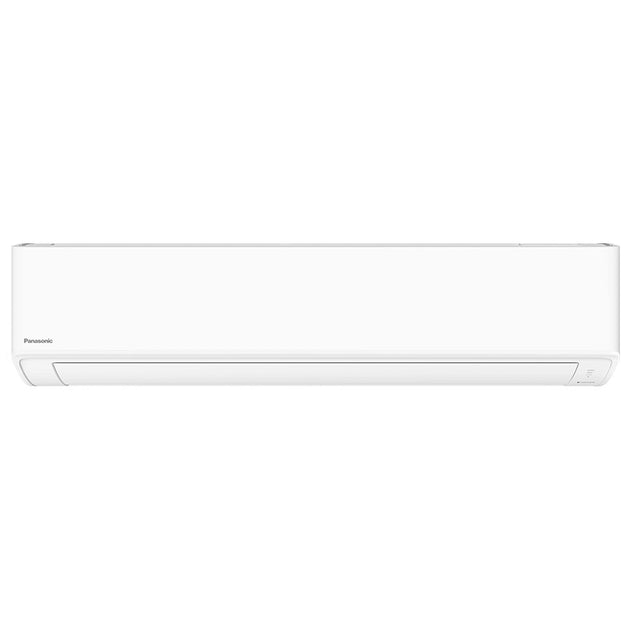

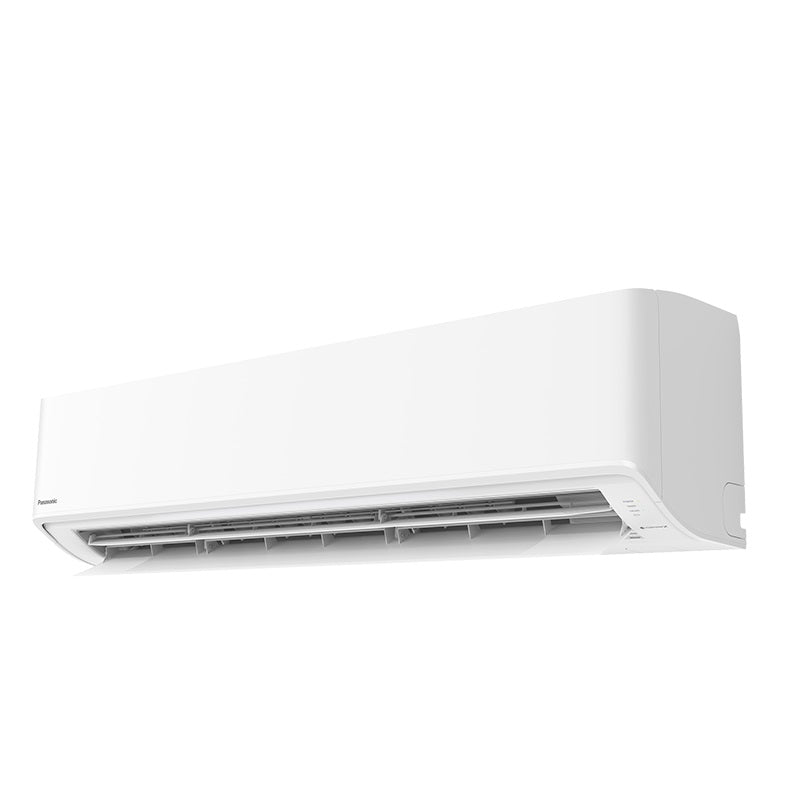

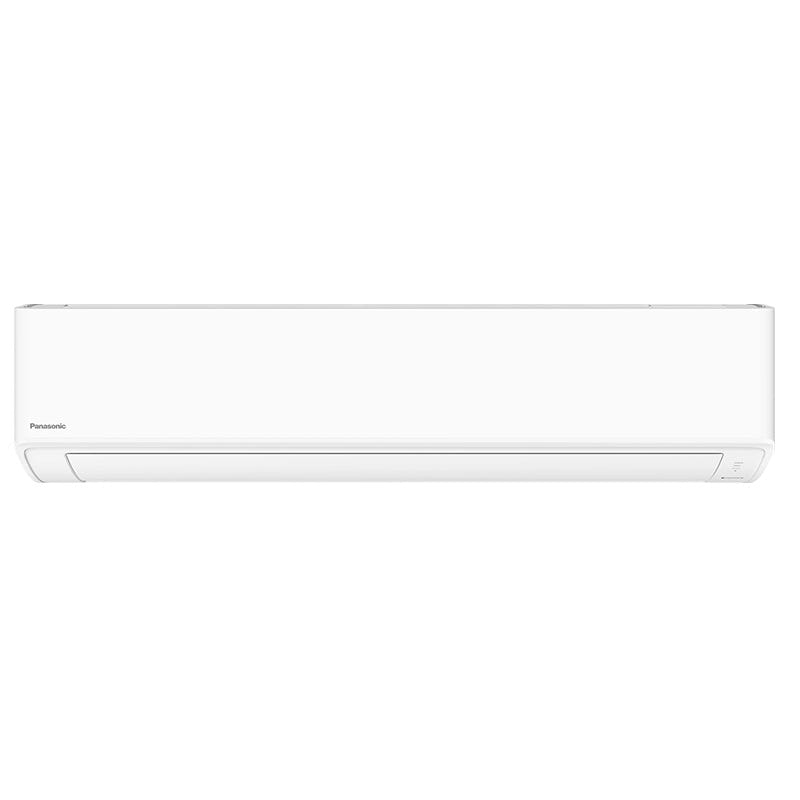

Panasonic 9.5/10.3kW Split Reverse Air Condiitioner

Panasonic 9.5/10.3kW Split Reverse Air Condiitioner

Model:

CS/CU-Z95AKR

Ipn:

835194

1 5
Panasonic

Panasonic 9.5/10.3kW Split Reverse Air Condiitioner

Panasonic 9.5/10.3kW Split Reverse Air Condiitioner

Model:

CS/CU-Z95AKR

Ipn:

835194

$450 Cashback
$3,233.00
Was $0.00 $3,233.00
$2,783.00 After cashback
Taxes included.

Up to $450 Cashback on Panasonic Air Conditioners

Bonus Cashback up to $450 on selected Panasonic Air Conditioners. Terms apply. Find out more

Valid until Wed, Mar 11, 2026

View full details
You have not set a location
Overview
Delivery & Returns
Payment Options
Back up plans

Overview

description

Stay comfortable all year round with the Panasonic 9.5/10.3kW Split Reverse Air Conditioner. This reverse cycle unit offers powerful cooling at 9.5kW and heating at 10.3kW, making it ideal for any climate. The Nanoe-X air purification system continuously cleans the air, removing harmful pollutants and allergens. With built-in Wi-Fi and smart control, you can easily adjust settings from your smartphone or tablet. The unit’s energy ratings of 3.5 / 3.0 / 3.5 Zerl Stars for cooling and 3.0 / 2.5 / 2.0 Zerl Stars for heating ensure efficient performance. Designed for easy installation and servicing, this air conditioner is a reliable and efficient choice for maintaining a comfortable home environment.

specifications

  • Brand
    Panasonic
  • IPN
    835194
  • Model
    CS/CU-Z95AKR
  • Manufacturer's Warranty
    5 Years
  • Size
    9.5/10.3kW
  • Width
    1212 mm
  • Height
    309 mm
  • Depth
    269 mm
  • Colour/Finish
    WHITE
  • Indoor Unit
    CS-Z95AKR

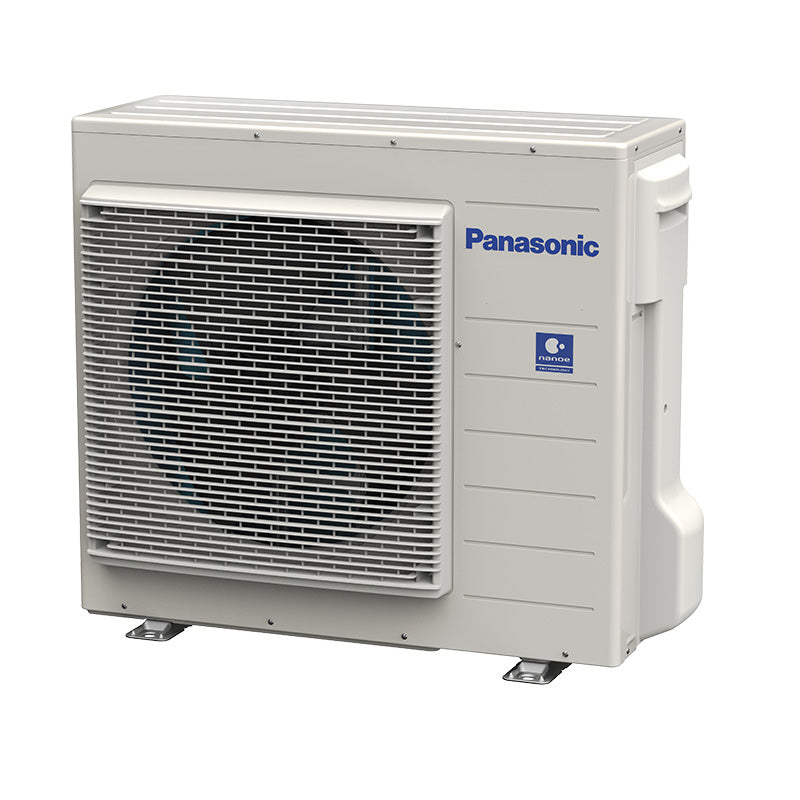

  • Outdoor Unit
    CU-Z95AKR
  • Cooling Capacity (min-max) (kW)
    9.50 (2.80-11.20) kW
  • Heating Capacity (min-max) (kW)
    10.30 (2.40-12.30) kW
  • Cooling Capacity (min-max) (Btu/h)
    32,400 (9,550-38,200) Btu/h
  • Heating Capacity (min-max) (Btu/h)
    35,100 (8,180-41,900) Btu/h
  • Cooling Indoor Air Flow (L/s)
    407 L/s
  • Heating Indoor Air Flow (L/s)
    420 L/s
  • Dehumid (L/h)
    5.00 L/h
  • Cooling Running Current (A)
    12.00 A
  • Heating Running Current (A)
    11.70 A
  • Max Current (A)
    16.60 A
  • Cooling Power Input (min-max) (kW)
    2.84 (0.50-3.50) kW
  • Heating Power Input (min-max) (kW)
    2.78 (0.44-3.50) kW
  • Cooling AEER/EER
    3.33 W/W / 3.35 W/W
  • Heating ACOP/COP
    3.69 W/W / 3.71 W/W

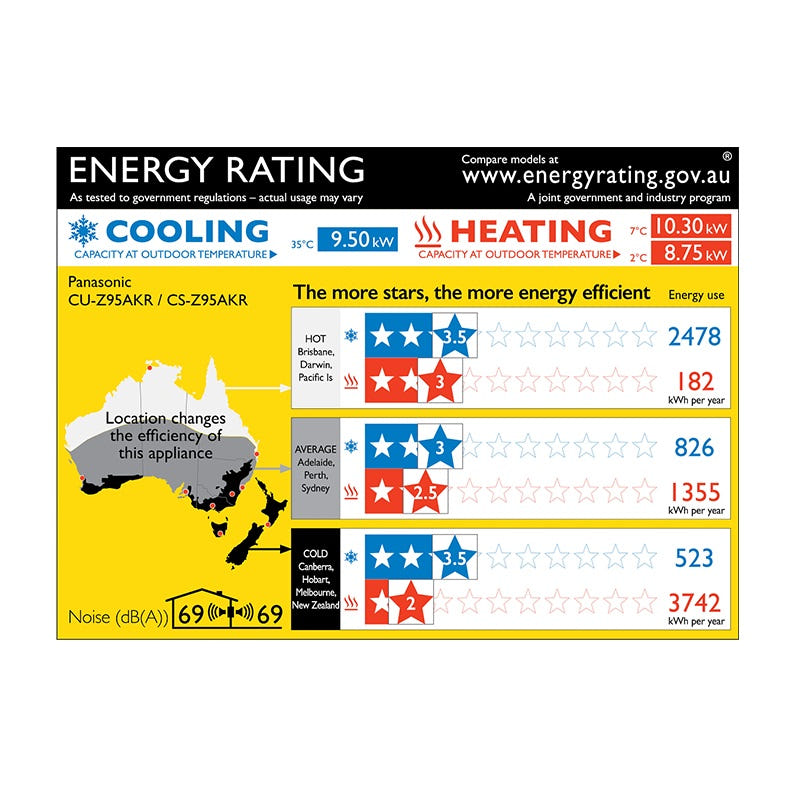

  • Star Rating - Cooling (Hot Climate)
    3.5 TCSPF
  • Star Rating - Cooling (Average Climate)
    3.0 TCSPF
  • Star Rating - Cooling (Cold Climate)
    3.5 TCSPF
  • Star Rating - Heating (Hot Climate)
    3.0 HSPF
  • Star Rating - Heating (Average Climate)
    2.5 HSPF
  • Star Rating - Heating (Cold Climate)
    2.0 HSPF
  • Indoor Unit Sound Pressure Noise Level (Cooling) (H / L / Q-Lo)
    53/40/38 dB(A) *Sound pressure level specification is measured according to JIS C9612.
  • Indoor Unit Sound Pressure Noise Level (Heating) (H / L / Q-Lo)
    52/40/35 dB(A) *Sound pressure level specification is measured according to JIS C9612.
  • Indoor Unit Sound Power Noise Level (Cooling) (H / L / Q-Lo)
    69/56/54 dB(A)
  • Indoor Unit Sound Power Noise Level (Heating) (H / L / Q-Lo)
    68/56/51 dB(A)
  • Outdoor Unit Sound Pressure Noise Level (Cooling) (H / Q-Lo)
    55/50 dB(A) *Sound pressure level specification is measured according to JIS C9612.
  • Outdoor Unit Sound Pressure Noise Level (Heating) (H / Q-Lo)
    55/50 dB(A) *Sound pressure level specification is measured according to JIS C9612.
  • Outdoor Unit Sound Power Noise Level (Cooling) (H / Q-Lo)
    69/64 dB(A)
  • Outdoor Unit Sound Power Noise Level (Heating) (H / Q-Lo)
    69/64 dB(A)
  • Refrigerant Type
    R32
  • Refrigerant Pipe Diameter (Liquid Side)
    ø 6.35 mm (1/4 inch)
  • Refrigerant Pipe Diameter (Gas Side)
    ø 15.88 mm (5/8 inch)
  • Pipe Extension Length (min-max)
    3 m ~ 20 m
  • Maximum Elevation Length
    20 m
  • Pipe Length for Additional Refrigerant Gas
    10 m
  • Additional Gas Amount
    25 g/m
  • Power Supply
    Outdoor
  • Outdoor Unit Operating Range (Cooling)
    -10°C ~ +46°C
  • Outdoor Unit Operating Range (Heating)
    -15°C ~ +24°C
  • iAUTO-X
    Yes
  • ECO Mode with A.I.
    Yes
  • Inverter Control
    Yes
  • Sleep Mode
    Yes
  • Quiet Mode
    Yes
  • Fan Mode
    Yes
  • Soft Dry Operation Mode
    Yes
  • Hot Start Control
    Yes
  • Auto Changeover (Inverter)
    Yes
  • Personal Airflow Creation
    No
  • Manual Horizontal Airflow Direction Control
    Yes
  • Airflow Direction Control (Up & Down)
    Yes
  • nanoe™ X
    Yes (Generator Mark 1)
  • Odour Removing Function
    Yes
  • Removable Washable Panel
    Yes
  • 24-Hour Dual ON & OFF Real Setting Timer
    Yes
  • Demand Response Enabling Device (DRED)
    Yes

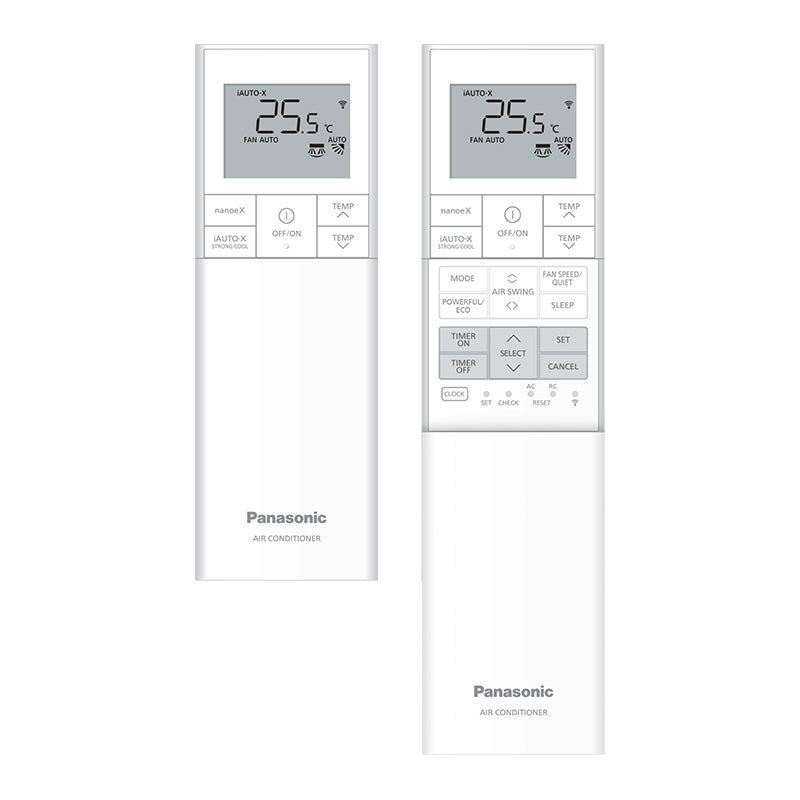

  • LCD Wireless Remote Control
    Yes
  • Wi-Fi
    Yes (Built-in)
  • Wired Remote Control
    Yes (Optional)
  • Random Auto Restart
    Yes (32 Restart Patterns)
  • Blue Fin Condenser
    Yes
  • Long Piping (max.)
    20 m
  • Top Panel Maintenance Access
    Yes
  • Self-Diagnostic Function
    Yes
  • Note
    Please read the Installation Instructions carefully before installing the unit, and the Operating Instructions before using it. Specifications are subject to change without prior notice.

features

  • 24-hour nanoe™ X Air Purification
  • iAUTO-X function
  • Built-in Wi-Fi
  • Voice Assistant Compatibility
  • Faster and Further Airflow with AEROWINGS
  • Built Tough to Last
  • ECO Mode with Artificial Intelligence (A.I.) Control
  • Corrosion-Resistant Blue Fin Condenser
  • Water Resistant PCB
  • Corrosion-Resistant Outdoor Coating
  • Better Heat Transfer with Copper Tube Condenser
  • Wireless Remote Controller
  • Optional Wired Remote Controller
