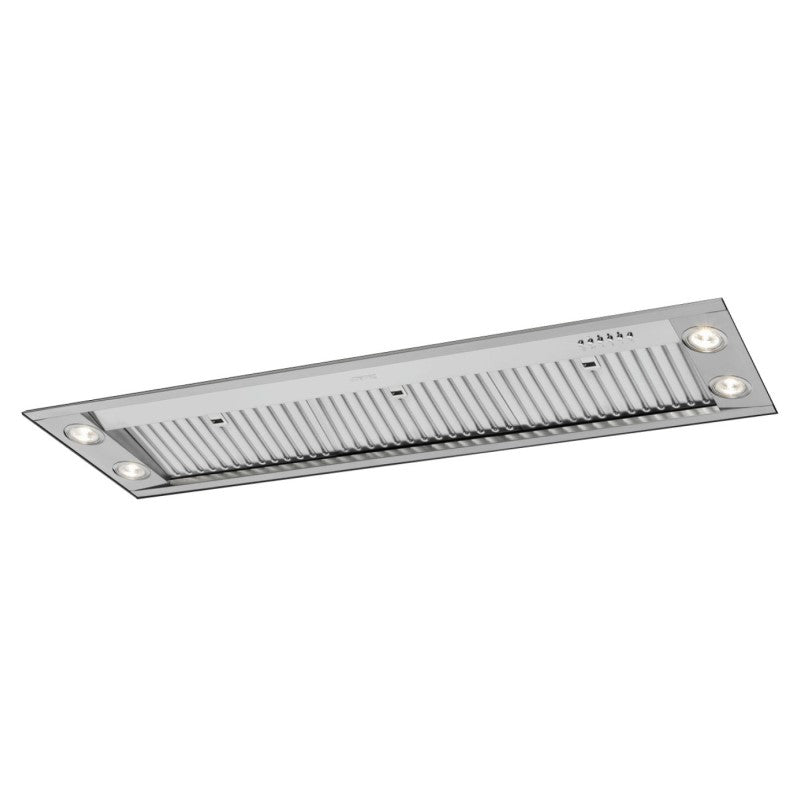

Smeg 120cm Diamond High Performance Undermount Rangehood

Smeg 120cm Diamond High Performance Undermount Rangehood

Model:

KDIAM120AX

Ipn:

835673

1 1
Smeg
Save 20%
Smeg 120cm Diamond High Performance Undermount Rangehood

Smeg 120cm Diamond High Performance Undermount Rangehood

Model:

KDIAM120AX

Ipn:

835673

Delivered direct from supplier Tooltip for Agency
Sale
$2,790.00
Was $3,490.00 $2,790.00
Taxes included.

EOFY Sale - Up to 50% Off!

Save up to 50% on selected products during the EOFY Sale. T&C's apply. Find out more

Offer ends Tue, Jun 30, 2026

Save up to 20% on Selected Smeg Appliances

Smeg EOFY Sale: Up to 20% off selected appliances between 18 June – 1 July 2026. T&C's apply. Find out more

Offer ends Wed, Jul 01, 2026

View full details
You have not set a location
Overview
Delivery & Returns
Payment Options
Back up plans

Overview

description

Achieve a fresh and serene kitchen environment with the Smeg 120cm Diamond High Performance Undermount Rangehood, engineered for extreme air extraction and low-noise operation. Ideal for those who love to cook, this rangehood swiftly removes smoke, grease, and odours, keeping your space pristine. With four fan speeds, you have full control over ventilation, from gentle extraction to maximum power. Thoughtfully designed, it includes bright LED lighting that enhances visibility on the cooktop, adding both functionality and modern elegance. The dishwasher-safe stainless steel filters are built to withstand heavy use, making cleaning simple and convenient. Blending high performance with Smeg’s signature style, this rangehood is a refined choice for kitchens that demand the best in design and functionality.

specifications

  • Brand
    Smeg
  • IPN
    835673
  • Model
    KDIAM120AX
  • Manufacturer's Warranty
    5 Years
  • Size
    120cm
  • Width
    11200 mm
  • Height
    360 mm
  • Depth
    295 mm
  • Colour/Finish
    STAINLESS STEEL
  • SIZE (CM)
    120 CM
  • Product family
    Hood
  • Hood Type
    Integrated hood
  • Hood width
    120 cm
  • Extraction
    Extraction
  • Electronic control
    Yes
  • Colour
    Stainless steel
  • Finishing
    Satin
  • Aesthetic
    Universale
  • Design
    Fully integrated
  • Material
    Stainless steel
  • Type of steel
    Brushed
  • No. of speeds
    3
  • Intensive speed
    Yes
  • Time-setting options
    Automatic switch-off
  • Control setting
    Electronic buttons
  • LED color
    White
  • No. of lights
    4
  • Light type
    LED
  • Light Power
    1 W
  • Light color temperature scale (°K)
    3000 °K
  • Free outlet maximum capacity
    1400 m³/h
  • Motor power
    550 W
  • No. of filters
    2
  • Anti-grease filters
    Baffle
  • Filter replacement indicator
    Yes
  • Minimum distance from GAS hob
    750 mm
  • Minimum distance from ELECTRIC hob
    650 mm
  • Vent outlet
    150 mm
  • Non-return valve
    Yes
  • Electrical connection rating
    555 W
  • Voltage
    220-240 V
  • Frequency (Hz)
    50-60 Hz
  • Power supply cable length
    1500 mm
  • Extraction rate IEC 61591
    552 m³/h
  • Noise level IEC 60704-2-13
    46 dB(A)
  • Power
    154 W
  • Extraction rate IEC 61591
    950 m³/h
  • Noise level IEC 60704-2-13
    63 dB(A)
  • Power
    255 W
  • Extraction rate IEC 61591
    1412 m³/h
  • Noise level IEC 60704-2-13
    71 dB(A)
  • Power
    334 W
  • Extraction rate (IEC 61591)
    1555 m³/h
  • Noise level IEC 60704-2-13
    74 dB(A)
  • Power
    370 W

features

  • 1400 m³/h maximum capacity
  • 3 speed settings
  • 4x 1W LED light
  • 2x anti-grease baffle filters
  • 550W motor
  • Automatic switch-off
