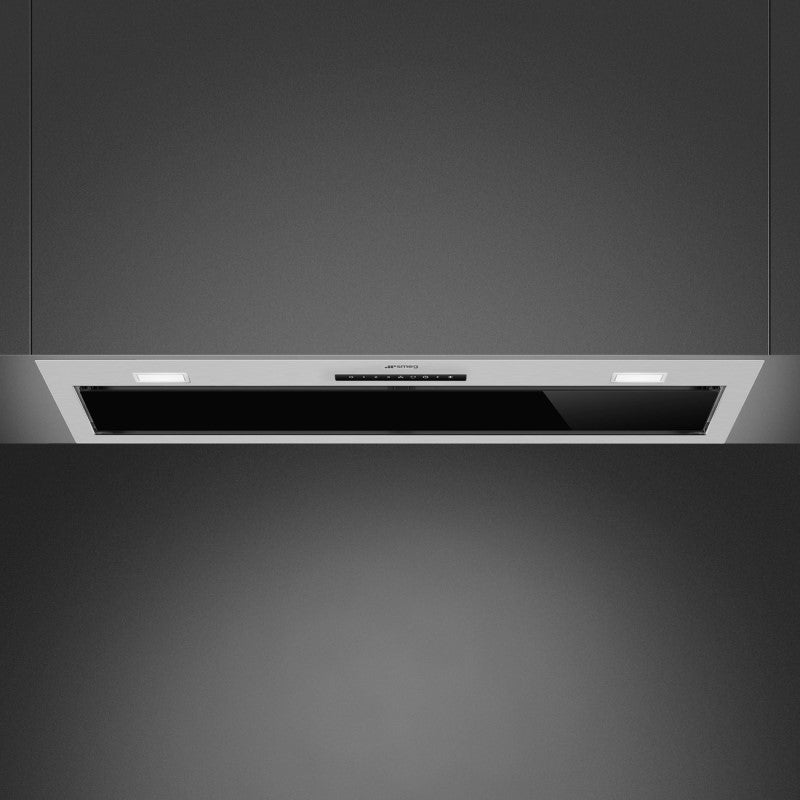

Smeg 90cm Undermount Rangehood - Black/Stainless Steel (Universale)

Smeg 90cm Undermount Rangehood - Black/Stainless Steel (Universale)

Model:

KSGAU9P4VN

Ipn:

834859

1 2
Smeg
Smeg 90cm Undermount Rangehood - Black/Stainless Steel (Universale)

Smeg 90cm Undermount Rangehood - Black/Stainless Steel (Universale)

Model:

KSGAU9P4VN

Ipn:

834859

$2,590.00
Was $0.00 $2,590.00
Taxes included.
View full details
You have not set a location
Overview
Delivery & Returns
Payment Options
Back up plans

Overview

description

The Smeg 90cm Integrated Hood in black glass and stainless steel offers a sophisticated blend of discreet design and intelligent functionality. Built to integrate seamlessly into cabinetry, it maintains a streamlined kitchen aesthetic without compromising on performance. Perimeter extraction ensures efficient airflow by concentrating suction around the edges, helping to remove smoke and odours more effectively. With Autovent 2.0, it works in harmony with compatible cooktops to automatically regulate extraction levels, simplifying the cooking experience. The Clean Air function helps keep the kitchen fresh over time, while the turbo function delivers powerful extraction when required. Adjustable light colour intensity provides flexibility to match different lighting preferences, and the delay function continues clearing the air after cooking has finished. It’s a thoughtfully designed rangehood that brings together convenience, efficiency, and modern style.

specifications

  • Brand
    Smeg
  • IPN
    834859
  • Model
    KSGAU9P4VN
  • Manufacturer's Warranty
    5 Years
  • Size
    90cm
  • Width
    900 mm
  • Height
    270 mm
  • Depth
    290 mm
  • Colour/Finish
    BLACK
  • SIZE (CM)
    90 CM
  • Product family
    Hood
  • Hood Type
    Integrated hood
  • Hood width
    90 cm
  • Extraction
    Extraction
  • Electronic control
    Yes
  • Perimeter extraction
    Yes
  • Colour
    Stainless Steel and Glass
  • Finishing
    Satin
  • Aesthetic
    Universale
  • Design
    Fully integrated
  • Material
    Stainless steel
  • Type of steel
    Brushed
  • No. of speeds
    3
  • Intensive speed
    Yes
  • 24hr filter function
    Yes
  • Time-setting options
    Automatic switch-off
  • Auto-vent 2.0
    Sì
  • Control setting
    Touch control back-lighted White
  • LED color
    White
  • No. of lights
    2
  • Light type
    LED
  • Light Power
    2.3 W
  • Dimmer mode
    Yes
  • Light color temperature range
    2700° - 4000° °K
  • Free outlet maximum capacity
    730 m³/h
  • Motor power
    230 W
  • No. of filters
    2
  • Anti-grease filters
    Aluminium
  • Filter replacement indicator
    Yes
  • Minimum distance from GAS hob
    650 mm
  • Minimum distance from ELECTRIC hob
    650 mm
  • Vent outlet
    150 mm
  • Non-return valve
    Yes
  • Energy efficiency class ( EEC)
    A
  • Fluid Dynamic Efficiency class (FDEC)
    A
  • Grease Filtering Efficiency Class (GFEC)
    C
  • Lighting Efficiency Class (LEC)
    A
  • Annual Efficiency Consumption (AEChood)
    53 kWh/a
  • Fluid Dynamic Efficiency (FDE)
    30.1
  • Lighting Efficiency (LE)
    31.1 lux/W
  • Grease Filtering Efficiency (GFE)
    77.9 %
  • Air flow at minumum speed (Qmin)
    242 m³/h
  • Air flow at maximum speed (Qmax)
    481 m³/h
  • Air flow at boost speed (Qboost)
    697 m³/h
  • Airbourne acoustical A-weighted sound Power Emission at minimum speed (SPEmin)
    45 dB(A)
  • Airborne acoustical A-weighted sound Power Emission at maximum speed (SPEmax)
    60 dB(A)
  • Airbourne acoustical A-weighted sound power emission at boost speed (SPEboost)
    67 dB(A)
  • Power Consumption in Off mode (Po)
    0.49 W
  • Time increase factor (F)
    0.9
  • Energy Efficiency Index
    52.6
  • Measured air flow rate at best efficiency point (Qbep)
    369 m³/h
  • Measured air pressure at best efficiency point (Pbep)
    446 Pa
  • Measured electric power input at best efficiency point (Wbep)
    152 W
  • Nominal Power consumption of the light system (WL)
    5 W
  • Average illumination of the light on the cooking surface (Emiddle)
    143 lux
  • Sound power level at highest setting (Lwa)
    60 dB(A)
  • Electrical connection rating
    235 W
  • Voltage
    220-240 V
  • Frequency (Hz)
    50-60 Hz
  • Power supply cable length
    1500 mm
  • Extraction rate IEC 61591
    243 m³/h
  • Noise level IEC 60704-2-13
    45 dB(A)
  • Power
    131 W
  • Extraction rate IEC 61591
    362 m³/h
  • Noise level IEC 60704-2-13
    53 dB(A)
  • Power
    164 W
  • Extraction rate IEC 61591
    481 m³/h
  • Noise level IEC 60704-2-13
    59 dB(A)
  • Power
    186 W
  • Extraction rate (IEC 61591)
    697 m³/h
  • Noise level IEC 60704-2-13
    67 dB(A)
  • Power
    224 W

features

  • 730m³/h maximum power capacity
  • 3-speed settings
  • 2x 2.3W LED lights
  • Aluminium anti-grease filters
  • 230W motor
  • Automatic switch-off
