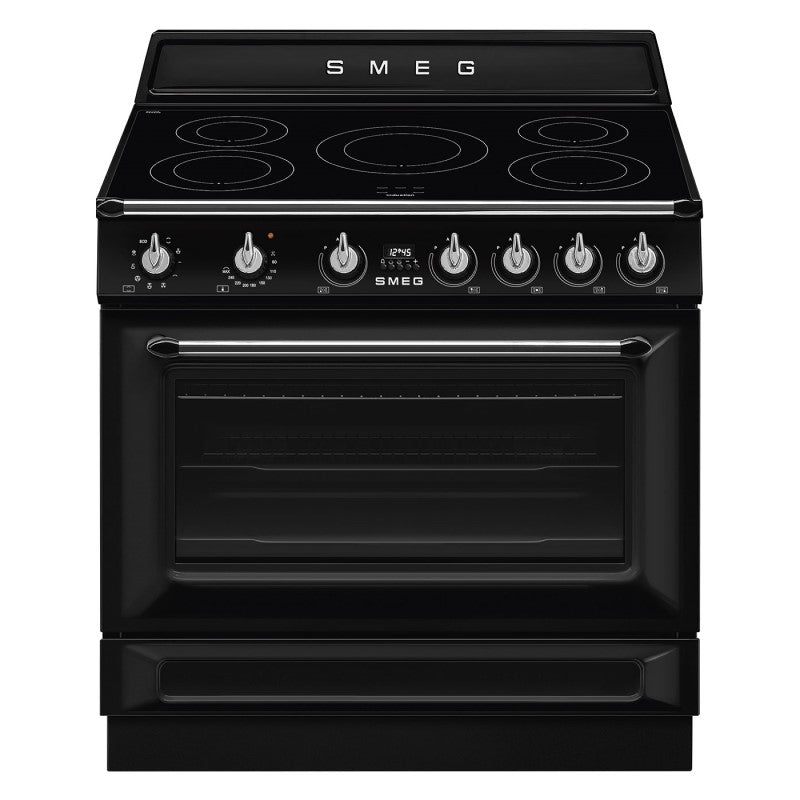

Smeg 90cm Victoria Induction Cooker 5 Zones/9 Functions - Black
Smeg 90cm Victoria Induction Cooker 5 Zones/9 Functions - Black
Model:
TR90IMBL
Ipn:
835224

Collapsible content
Overview
description
specifications
-
BrandSmeg
-
IPN835224
-
ModelTR90IMBL
-
Manufacturer's Warranty5 Years
-
Size90cm
-
Width900 mm
-
Height910 mm
-
Depth600 mm
-
Colour/FinishBLACK
-
SIZE (CM)90 CM
-
Cooktop Burners5
-
Fuel TypeINDUCTION
-
ColourBlack
-
DesignVictoria
-
FinishingGlossy
-
AestheticVictoria
-
Command panel finishEnamelled metal
-
MaterialEnamelled
-
UpstandYes
-
Hob colourBlack enamel
-
Type of control settingControl knobs
-
SliderRed
-
Control knobsSmeg Victoria
-
Controls colourStainless steel
-
No. of controls7
-
Displayelectronic 5 buttons
-
DoorWith frame
-
Glass typeBlack
-
HandleSmeg Victoria
-
Handle ColourPolished chrome
-
Storage compartmentPush pull
-
Feetnone
-
PlinthAnthracite
-
Product FamilyCooker
-
Cooker size90x60 cm
-
Cooker configurationFull electric
-
Hob typeInduction
-
Hob energy typeElectric
-
N. of ovens1
-
Type of main ovenThermoseal
-
Installation positioning of the applianceFree-standing, Class 1, Built-in, Class 2-1 norm UNI EN 30-1-1
-
Cleaning systemVapour Clean
-
Other functionsDefrost by time
-
Traditional cooking functionsStatic, Fasn assisted, Circulaire, Eco, Samll grill, Large grill, Fan grill, Base, Fas assisted button
-
Cleaning functionsVapour clean
-
TimerYes
-
End of cooking acoustic alarmYes
-
Minimum Temperature50 °C
-
Maximum temperature260 °C
-
Control Lock / Child SafetyYes
-
Limited Power Consumption ModeYes
-
Limited Power Consumption Mode in W3700, 4800, 7400 W
-
Total no. of cook zones5
-
1st zone positionFront left
-
2nd zone positionRear left
-
3rd zone positionCentral
-
4th zone positionRear right
-
5th zone positionFront right
-
1st zone typeInduction - single
-
2nd zone typeInduction - single
-
3rd zone typeInduction - single
-
4th zone typeInduction - single
-
5th zone typeInduction - single
-
1st zone dimensionsØ 18.0 cm
-
2nd zone dimensionsØ 21.0 cm
-
3rd zone dimensionsØ 27.0 cm
-
4th zone dimensionsØ 18.0 cm
-
5th zone dimensionsØ 21.0 cm
-
1st zone power1.30 kW
-
2nd zone power2.30 kW
-
3rd zone power2.30 kW
-
4th zone power1.30 kW
-
5th zone power2.30 kW
-
1st zone booster power1.40 kW
-
2nd zone booster power3.00 kW
-
3rd zone booster power3.00 kW
-
4th zone booster power1.40 kW
-
5th zone booster power3.00 kW
-
Automatic switch off when overheatYes
-
Automatic pan detectionYes
-
Minimum pan diameter indicationYes
-
Selected zone indicatorYes
-
Net volume of the cavity115 l
-
Gross volume, 1st cavity129 l
-
Cavity materialEver Clean enamel
-
No. of shelves5
-
Type of shelvesMetal racks
-
No. of lights2
-
Light typeHalogen
-
Light Power40 W
-
Fan number2
-
Cooking time settingStart and Stop
-
Door openingFlap down
-
Light when oven door is openYes
-
Removable doorYes
-
Full glass inner doorYes
-
Removable inner doorYes
-
Total no. of door glasses3
-
No.of thermo-reflective door glasses2
-
Safety ThermostatYes
-
Cooling systemTangential
-
Grill typeElectric
-
Grill elememt1700 W
-
Large grill - Power2900 W
-
Lower heating element power1700 W
-
Upper heating element - Power1200 W
-
Circular heating element - Power1550 W
-
Soft Close systemYes
-
Temperature controlElectro-mechanical
-
Energy efficiency classA
-
Energy consumption in forced air convection3.53 MJ
-
Energy consumption per cycle in fan-forced convection0.98 KWh
-
Energy consumption in conventional mode4.36 MJ
-
Energy consumption per cycle in conventional mode1.21 KWh
-
Energy consumption for the hob172.1 Wh/Kg
-
Energy consumption zone 1176.7 Wh/Kg
-
Energy consumption zone 2182.6 Wh/Kg
-
Energy consumption zone 3142 Wh/Kg
-
Energy consumption zone 4176.7 Wh/Kg
-
Energy consumption zone 5182.6 Wh/Kg
-
Electrical connection rating10600 W
-
Current46 A
-
Voltage220-240 V
-
Voltage 2 (V)380-415 V
-
Frequency50/60 Hz
-
Type of electric cableYes, Double and Three Phase
-
Type of electric cable installedYes, Single phase
-
Standby activation time1 min.
-
Standby power1.2 W
-
Show information in StandbyYes
features
- 5 cooking zones
- Induction hob
- 129L oven capacity
- True-convection
- Vapor Clean
- New cooling system with tangential fan & airflow
- Silent closing
- Automatic switch off when overheat
- Automatic pan detection
