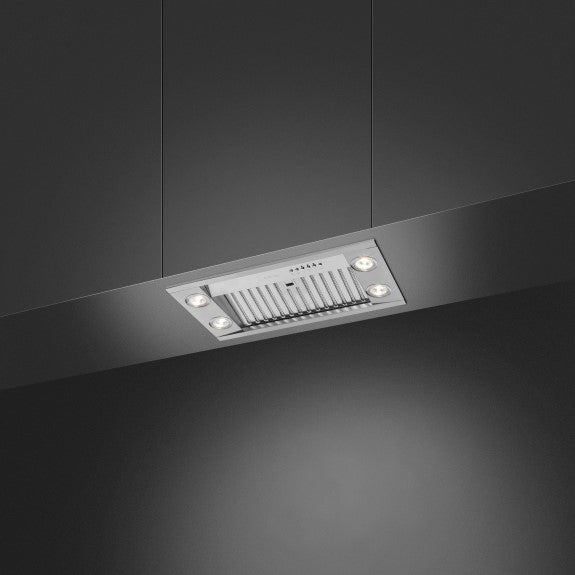

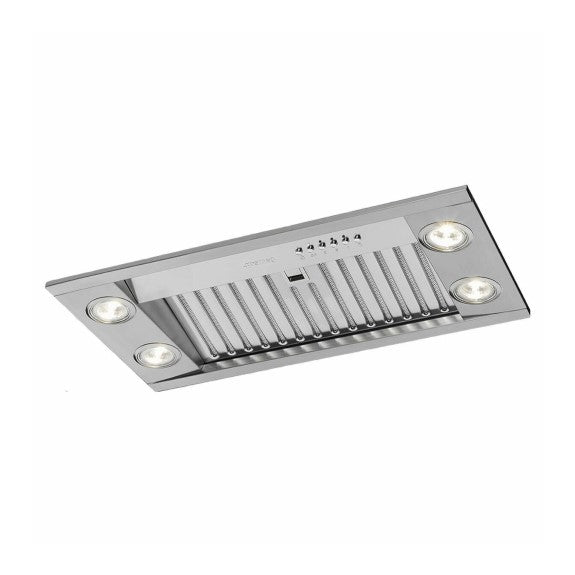

Smeg 60cm Diamond Concealed Undermount Rangehood - Stainless Steel

Smeg 60cm Diamond Concealed Undermount Rangehood - Stainless Steel

Model:

KDIAM60AX

Ipn:

827275

1 2
Smeg
Save 10%
Smeg 60cm Diamond Concealed Undermount Rangehood - Stainless Steel

Smeg 60cm Diamond Concealed Undermount Rangehood - Stainless Steel

Model:

KDIAM60AX

Ipn:

827275

Delivered direct from supplier Tooltip for Agency
$2,240.00
Was $2,490.00 $2,240.00
Taxes included.

Save up to $1600 off Selected Premium Smeg Kitchen Appliances

Save up to $1600 on select kitchen appliances and wine cabinets. T&C's apply. Find out more

Offer ends Wed, May 27, 2026

View full details
You have not set a location
Overview
Delivery & Returns
Payment Options
Back up plans

Overview

description

The Smeg Diamond 60cm Concealed Rangehood offers a refined, space-saving solution for kitchens that value both performance and understated design. Fully integrated within cabinetry, it remains neatly out of sight while effectively handling everyday cooking demands. With a maximum extraction rate of 679 m3/hr, it works efficiently to clear steam, odours, and airborne grease, helping to keep the kitchen environment fresh and comfortable. The electronic button controls are straightforward and responsive, allowing easy selection between three speed settings depending on what’s being prepared. Its automatic switch-off function adds a thoughtful touch of convenience, continuing to ventilate after cooking before powering down on its own. Designed to complement modern interiors without drawing attention, this Smeg concealed rangehood delivers dependable performance in a compact, streamlined form that fits effortlessly into contemporary kitchen spaces.

specifications

  • Brand
    Smeg
  • IPN
    827275
  • Model
    KDIAM60AX
  • Manufacturer's Warranty
    5 Years
  • Size
    60cm
  • Width
    0 mm
  • Height
    0 mm
  • Depth
    0 mm
  • Colour/Finish
    INTEGRATED (OWN CABINETRY)
  • SIZE (CM)
    60 CM
  • Product family
    Hood
  • Hood Type
    Integrated hood
  • Hood width
    60 cm
  • Extraction
    Extraction
  • Electronic control
    Yes
  • Colour
    Stainless steel
  • Finishing
    Satin
  • Aesthetics
    Universale
  • Design
    Fully integrated
  • Material
    Stainless steel
  • Type of steel
    Brushed
  • No. of speeds
    3
  • Intensive speed
    Yes
  • Time-setting options
    Automatic switch-off
  • Control setting
    Electronic buttons
  • Led color
    White
  • No. of lights
    4
  • Light type
    LED
  • Light Power
    1 W
  • Light color temperature scale (°K)
    3000 °K
  • Free outlet maximum capacity
    820 m³/h
  • Motor power
    275 W
  • No. of filters
    2
  • Anti-grease filters
    Buffle
  • Filter replacement indicator
    Yes
  • Minimum distance from GAS hob
    650 mm
  • Vent outlet
    150 mm
  • Minimum distance from ELECTRIC hob
    650 mm
  • Non return valve
    Yes
  • Electrical connection rating
    279 W
  • Voltage
    220-240 V
  • Frequency (Hz)
    50-60 Hz
  • Power supply cable length
    1500 mm
  • Extraction rate IEC 61591
    245 m³/h
  • Noise level IEC 60704-2-13
    50 dB(A)
  • Power
    165 W
  • Extraction rate IEC 61591
    384 m³/h
  • Noise level IEC 60704-2-13
    60 dB(A)
  • Power
    208 W
  • Extraction rate IEC 61591
    584 m³/h
  • Noise level IEC 60704-2-13
    70 dB(A)
  • Power
    238 W
  • Extraction rate (IEC 61591)
    679 m³/h
  • Noise level IEC 60704-2-13
    72 dB(A)
  • Power
    246 W

features

  • 820 m³/h
  • 3 speeds
  • Automatic switch-off
  • Stainless steel
  • Electronic buttons
