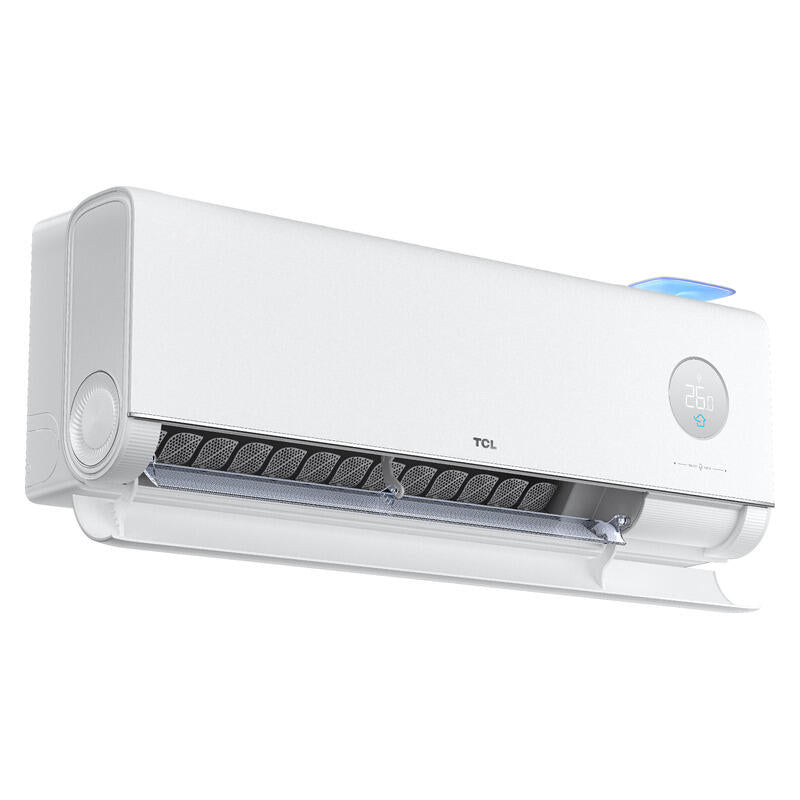

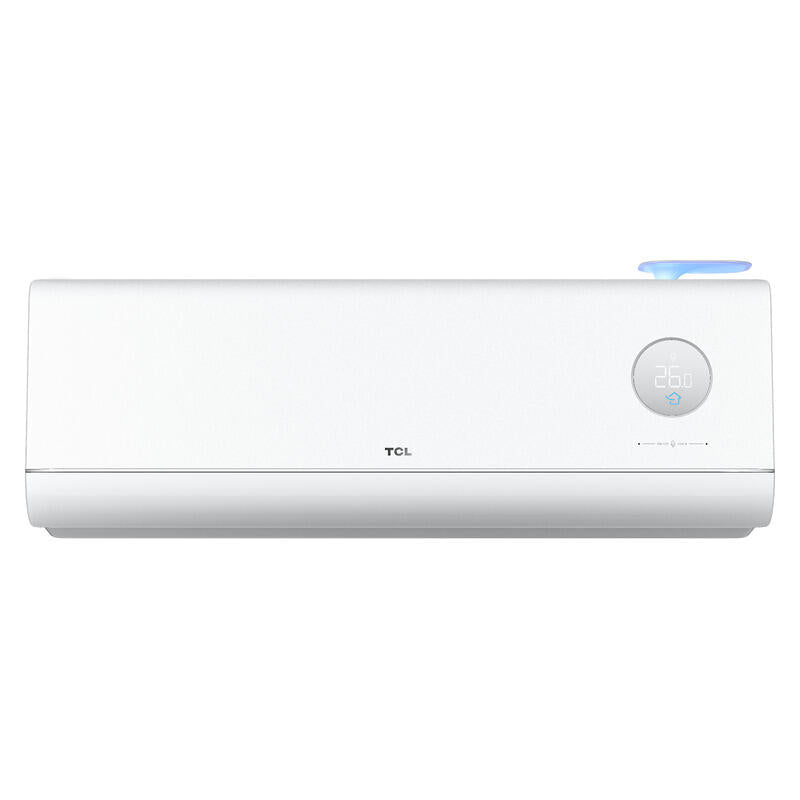

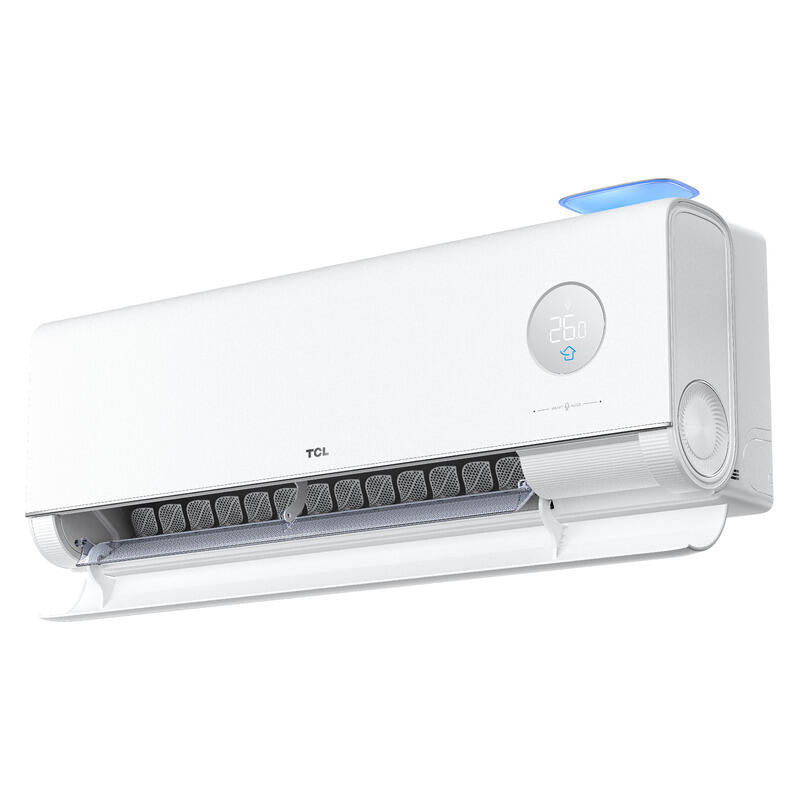

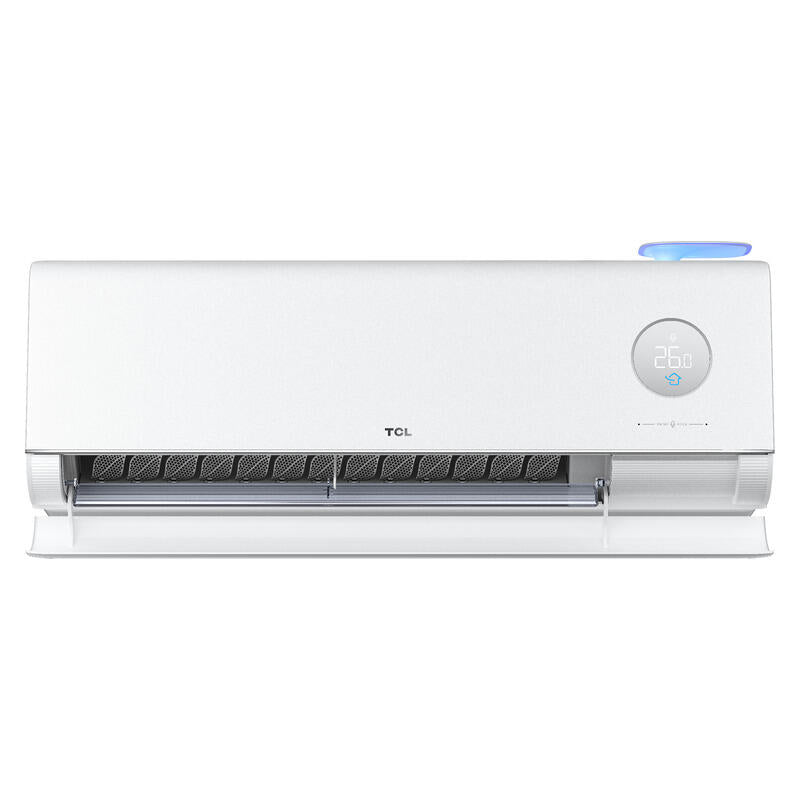

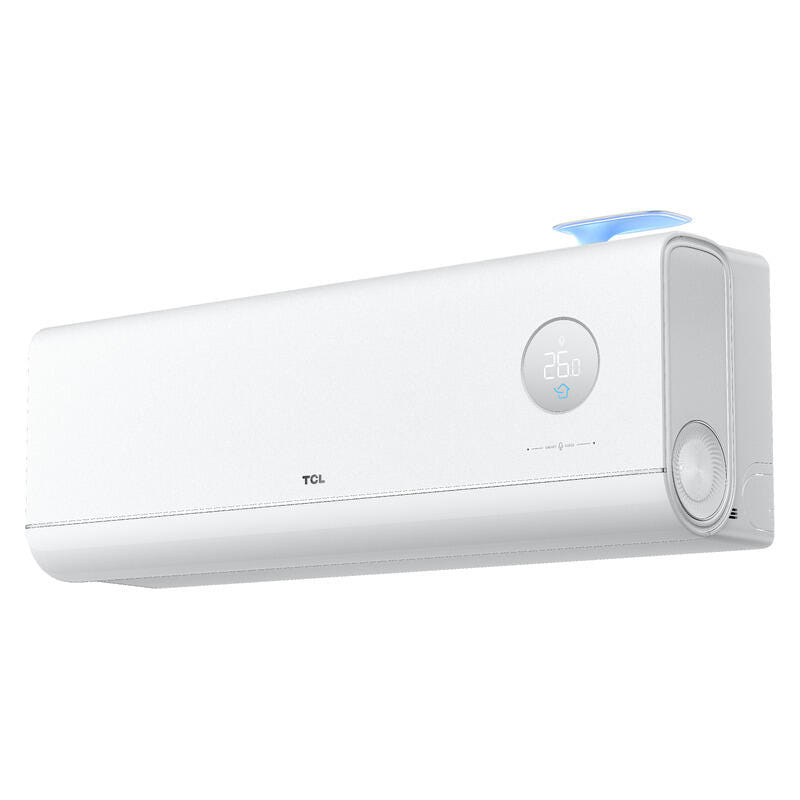

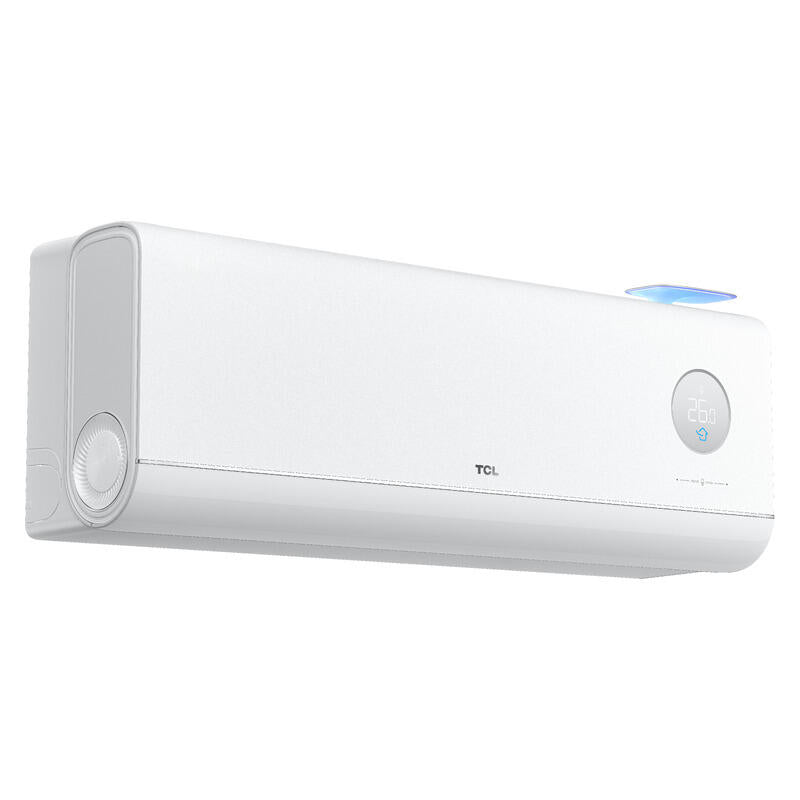

TCL 2.2kW-Cool / 2.6kW-Heat Air Conditioner Package - Wall Console Split System

TCL 2.2kW-Cool / 2.6kW-Heat Air Conditioner Package - Wall Console Split System

Model:

TAC-09CHSD/P7

Ipn:

877777

1 6
TCL
TCL 2.2kW-Cool / 2.6kW-Heat Air Conditioner Package - Wall Console Split System

TCL 2.2kW-Cool / 2.6kW-Heat Air Conditioner Package - Wall Console Split System

Model:

TAC-09CHSD/P7

Ipn:

877777

Sold out
$1,099.00
Was $0.00 $1,099.00
Taxes included.

Extended Warranty on select TCL Air Conditioners

Extend your TCL air conditioner warranty to 7 years. Offer valid until 1 July 2027. T&C's apply. Find out more

Offer ends Thu, Jul 01, 2027

Redeem by Sat, Jul 31, 2027

View full details
You have not set a location
Overview
Delivery & Returns
Payment Options
Back up plans

Overview

description

Control your comfort your way with the TCL 2.2kW Cool / 2.6kW Heat Split System, sized perfectly for smaller rooms. Whether it's a voice command through Google Assistant or Alexa, a quick tap in the TCL Home app, or Offline Voice Control when your Wi-Fi drops out, this unit adapts to how you want to manage it. Fast Cooling & Heating delivers rapid temperature changes the moment you walk into a bedroom or study, while Gentle Breeze softens airflow for a more natural, comfortable feel in compact spaces. T-AI Energy Saving works quietly in the background to optimise energy use, and Fresh Air Mode helps keep indoor air feeling refreshed rather than stale. Reversible and ideal for bedrooms, nurseries and small studies up to roughly 15–20m² — smart, flexible comfort in a compact package.

specifications

  • Brand
    TCL
  • IPN
    877777
  • Model
    TAC-09CHSD/P7
  • Manufacturer's Warranty
    5 Years
  • Size
    2.6/2.6KW
  • Width
    920 mm
  • Height
    208 mm
  • Depth
    313 mm
  • Colour/Finish
    WHITE
  • Indoor/Outdoor Unit
    TAC-09CHSD/P7
  • Operation Type
    Reverse Cycle
  • Capacity
    2.6KW Cooling Capacity / 3.6KW Heating Capacity
  • Gentle Breeze Mode
    Yes
  • Off-line local Voice activation
    Yes
  • Anti Bacterial HEPA filter
    Yes
  • Smart AI Inverter
    Yes
  • I Feel Function
    Yes
  • Air Quality Indicator
    Yes
  • Sleep Mode
    Yes
  • Fresh Air Mode
    Yes
  • Works with Google Assistant / Amazon Alexa / TCL Home App
    Yes
  • 24Hr Timer
    Yes
  • Eco Mode
    Yes
  • 7 Fan Speed (Smart Air Flow)
    Yes
  • LED Display - On/Off
    Yes
  • Easy Clean Design
    Yes
  • 4 step Coil Clean / Clean Reminder
    Yes
  • WiFi Connectivity
    Yes
  • Gold Fin Coil Protection
    Yes
  • Indoor Unit - dB (A)
    52
  • Outdoor Unit - dB (A)
    61
  • Cooling Capacity (KW)
    2.6 (0.15-3.5)
  • Heating Capacity (KW)
    3.6 (0.15~5.20)
  • Rated Input-Cooling (KW)
    0.59
  • Rated Input-Heating (KW)
    0.79
  • Moisture Removal (Litre/Hour)
    0.8
  • AEER
    4.47
  • ACOP
    4.50
  • Outdoor Operating Temperature Range (°C)
    Cooling:15~50OC | Heating:-15~24OC
  • Indoor Operating Temperature Range (°C)
    Cooling:17~32OC | Heating:0~27OC
  • Energy Star Rating for Cooling - Hot & Humid
    4.5
  • Energy Star Rating for Cooling - Mixed
    4.0
  • Energy Star Rating for Cooling - Cold
    4.0
  • Energy Star Rating for Heating - Hot & Humid
    3.0
  • Energy Star Rating for Heating - Mixed
    2.5
  • Energy Star Rating for Heating - Cold
    2.5
  • Power Supply
    220-240V~50Hz
  • Rated Current Cooling (A)
    0.5~8.6
  • Rated Current Heating (A)
    0.5~9.0
  • Max Current (Cooling / Heating) (A)
    8.6/9.0
  • Max Input (Cooling / Heating) (W)
    1850/2000
  • Standby Power (W)
    3.1
  • Breaker Size (A)
    16
  • Air Circulation (L/S) Cooling
    189
  • Air Circulation (L/S) Heating
    189
  • Compressor Type
    Inverter
  • Refrigerant (type/gram)
    R32/0.630
  • Liquid Pipe (mm)
    F6.35(1/4'')
  • Gas Pipe (mm)
    F9.52(3/8'')
  • Maximum Piping Length (m)
    15
  • Max Height Difference (m)
    10

features

  • 2.6Kw Cooling Capacity
  • 2.6Kw Heating Capacity
  • Smart AI Inverter
  • Anti Bacterial HEPA filter
  • Off-line local Voice activation
  • Air Quality Indicator
  • Fresh Air Mode
  • Gold Fin Coil Protection
  • 4 step Coil Clean
  • 7 Fan Speed (Smart Air Flow)
  • Stable Operations at 66°C High Temp
  • Stable Heating at -25°C Low Temp
  • Quadruple Noise Reduction System
  • QuadruPuri Filters
  • Filter Life Span Reminder
  • Gentle Breeze
  • 58°C Self-cleaning Function
  • Outdoor Unit Self-cleaning
  • R32 Eco-friendly Refrigerant
  • 108mm Large Diameter Cross Flow Fan
