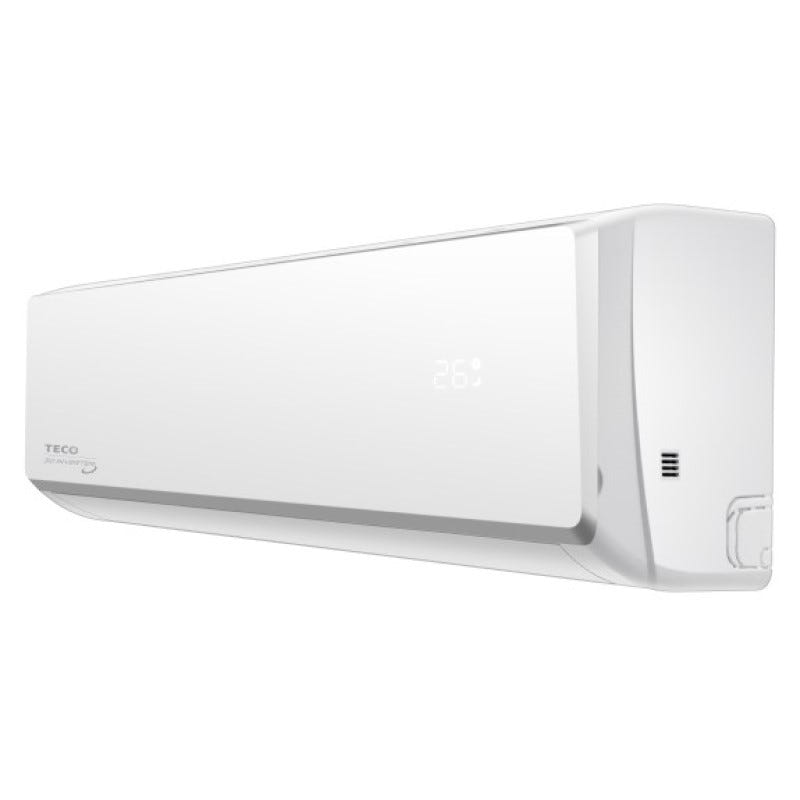

Teco 2.6/3.3KW Air Conditioner Split Reverse Inverter BI Wi-Fi
Teco 2.6/3.3KW Air Conditioner Split Reverse Inverter BI Wi-Fi
Model:
TWS-TSO26H3DVKT
Ipn:
836722

Collapsible content
Overview
description
specifications
-
BrandTECO
-
IPN836722
-
ModelTWS-TSO26H3DVKT
-
Manufacturer's Warranty7 Years
-
Size2.6/3.3
-
Width811 mm
-
Height292 mm
-
Depth203 mm
-
Colour/FinishWHITE
-
Rated cooling capacity W2620 (800~3700)
-
Rated heating capacity W3300 (600~4400)
-
AEER for cooling W/W4.6774
-
ACOP for heating W/W4.4287
-
TCSPF for coolingcold: 6.293
-
Energy star for coolingcold: 4.5
-
HSPF for heatingcold: 4.249
-
Energy star for heatingcold: 2.5
-
Operation temperature range16°C~31°C
-
Ambient temperature rangeOutdoor °C: Cooling:15-50/Heating:-15-24; Indoor°C: Cooling:17-32/Heating:0-27
-
Moisture removal L/H0.8
-
Sound Power Indoor dB(A)55
-
Sound Power Outdoor dB(A)61
-
Pressure High(DP) MPa4.3
-
Pressure Low(SP) MPa1.2
-
Power supply V220-240V~50Hz
-
Voltage Range V165~265
-
Running current Cooling A3.9(0.4~5.8)
-
Running current Heating A3.4(0.5~5.9)
-
Rated input Cooling W550(100~1300)
-
Rated input Heating W735(110~1400)
-
Max current cooling/heating A5.8/5.9
-
Max input cooling/heating W1300/1400
-
Standby power W3
-
Refrigerant kgR32/0.520
-
Indoor air circulation Cooling/heating m3/h600/620
-
Indoor fan speed H/M/L Cooling rpm1270/1150/1050/900/780/700/600
-
Indoor fan speed H/M/L Heating rpm1220/1150/1100/980/920/850/800
-
Indoor fan speed H/M/L Dry rpm700
-
Indoor fan speed H/M/L Sleep rpm700/850
-
Indoor fan motor output W25
-
Outdoor fan speed rpm1000
-
Outdoor fan motor output W33
-
Connecting Pipe Gas InchesF9.52(3/8”)
-
Connecting Pipe Liquid InchesF6.35(1/4”)
-
Max. Pipe length Meters15
-
Max. Height difference Meters10
-
Connecting Wiring Size x Core number4×0.75
-
Suitable area (Reference only) m29~16
features
- Gold Fin Protection
- Louvre Memory
- Interactive Digital Display
- Energy Efficient Performance
- Service Friendly
- R32 Refrigerant
- Built-in Wi-Fi
- Clean Indoor Self-Cleaning
- 3D Air Flow & 4 Way Auto Swing
- ECO Mode & Silent Mode
- Turbo Fan Mode & Cold Air Prevention
- Auto Restart & Timer Mode
- Scan to Install & App Control
- D.R.E.D. Connection
- Long Distance Air Flow
- Refrigerant Leak Detection
- High Density Filter
- Sleep Mode
