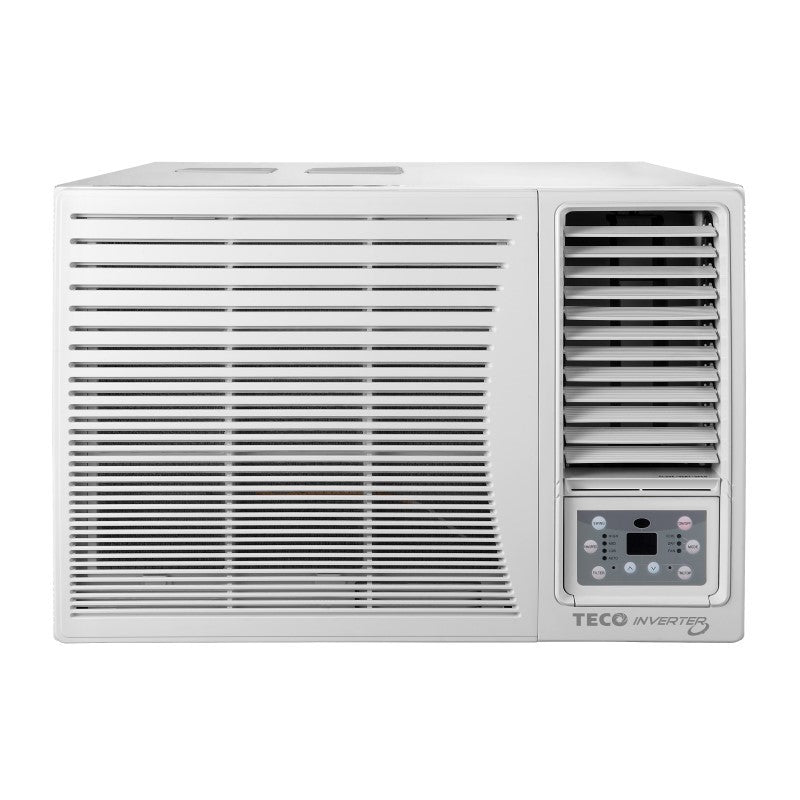

Teco 3.6kW Window Wall Reverse Inverter Air Condtioner

Teco 3.6kW Window Wall Reverse Inverter Air Condtioner

Model:

TWW36HVAG

Ipn:

835134

1 1
Teco
Save 5%
Teco 3.6kW Window Wall Reverse Inverter Air Condtioner

Teco 3.6kW Window Wall Reverse Inverter Air Condtioner

Model:

TWW36HVAG

Ipn:

835134

$1,139.00
Was $1,199.00 $1,139.00
Taxes included.
View full details
You have not set a location
Overview
Delivery & Returns
Payment Options
Back up plans

Overview

description

Discover the perfect balance of comfort and conservation with the Teco 3.6kW Air Conditioner. Its advanced inverter compressor delivers optimal temperature control with minimal noise and energy use. The Silver ION filter purifies the air, while the Gold Fin Protection ensures longevity. Set the sleep timer and rest easy, knowing you're saving energy with its excellent Zerl Star ratings.

specifications

  • Brand
    TECO
  • IPN
    835134
  • Model
    TWW36HVAG
  • Manufacturer's Warranty
    5 Years
  • Size
    3.6kW
  • Width
    660 mm
  • Height
    428 mm
  • Depth
    700 mm
  • Colour/Finish
    WHITE
  • Cooling Capacity W
    3600
  • Cooling Capacity Range W
    3600(Rated)/1800(Mid)
  • Cooling Power Input W
    1085
  • Cooling Power Input Range W
    1085(Rated)/475(Mid)
  • Cooling Power Current A
    5.2
  • Cooling Power Current Range A
    5.2(Rated)/2.6(Mid)
  • Heating Capacity W
    3500
  • Heating Capacity Range
    W: 3500(Rated)/1750(Mid)
  • Heating Power Input W
    1065
  • Heating Power Input Range W
    1065(Rated)/435(Mid)
  • Heating Power Current A
    5.1
  • Heating Power Current Range A
    5.1(Rated)/2.4(Mid)
  • EER W/W
    3.3180
  • AEER W/W
    3.2722
  • Cooling Star Rating (Hot / Mixed / Cold)
    2.5/2/2
  • Cooling Energy Consumption (Hot / Mixed / Cold) kWh/year
    1108/377/247
  • COP W
    3.2864
  • ACOP W
    3.2402
  • Heating Star Rating (Hot / Mixed / Cold)
    1.5/0.5/0.5
  • Heating Energy Consumption (Hot / Mixed / Cold) kWh/year
    95/862/2275
  • Noise (Energy Label – Indoor / Outdoor) dB(A)
    64/70
  • Rated Input (Max) W
    1500
  • Rated Current (Max) A
    7.8
  • Inactive Energy (Avg) W
    4.5
  • Air Flow Volume(H/M/L) m3/h
    550/470/400
  • Air Flow Volume(H/M/L) L/s
    153/131/111
  • Air Flow Volume(H/M/L) CFM
    324/277/235
  • Dehumidifying Volume L/h
    1.4
  • Dehumidifying Volume Pint/h
    2.96
  • Application Area m2
    16-24
  • Permissible Excessive Operating Pressure for the Discharge Side MPa
    4.3
  • Permissible Excessive Operating Pressure for the Suction Side MPa
    2.5
  • Maximum Allowable Pressure MPa
    4.3
  • Climate Type
    T1
  • Isolation
    I
  • Moisture Protection
    IPX4(outdoor)
  • Evaporater Coil Hydrophilic Coating
    Blue
  • Condensor Coil Hydrophilic Coating
    Gold
  • Stacking layers
    6
  • Refrigerant
    R32
  • Refrigerant Charge kg
    0.8
  • Electronic Control with Remote Controller
    YES
  • Auto
    YES
  • Cooling
    YES
  • Heating
    YES
  • Dehumidify
    YES
  • Sleep
    YES
  • Timer
    YES
  • Auto Swing (Horizontal Auto Swing)
    YES
  • Air Flow
    YES
  • Memory
    YES
  • Auto Fan
    YES
  • Filter Dirty Alarm
    YES
  • Soft Start
    YES
  • Low Voltage Startup
    YES
  • Intelligent Preheating
    YES
  • Auto Restart
    YES
  • Self Diagnosis
    YES
  • Silver Ion Sterilizing Filter
    YES
  • Rated Voltage V
    220-240
  • Rated Frequency Hz
    50
  • Phases
    1
  • Fan Type
    Centrifugal
  • Set Temperature Range C
    16~30
  • Sound Pressure Level (H/M/L) dB (A)
    50/47/45
  • Sound Power Level (H/M/L) dB (A)
    60/57/55
  • Cooling Operation Ambient Temperature Range C
    18~43
  • Heating Operation Ambient Temperature Range C
    -7~24
  • Sound Pressure Level (H/M/L) dB (A)
    62/59/57
  • Sound Power Level (H/M/L) dB (A)
    72/69/67

features

  • 3.6kW Cooling Capacity
  • 3.5kW Heating Capacity
  • Gold Fin Protection
  • High Density Filters
  • Filter Dirty Alarm
  • Electronic Control with Remote
