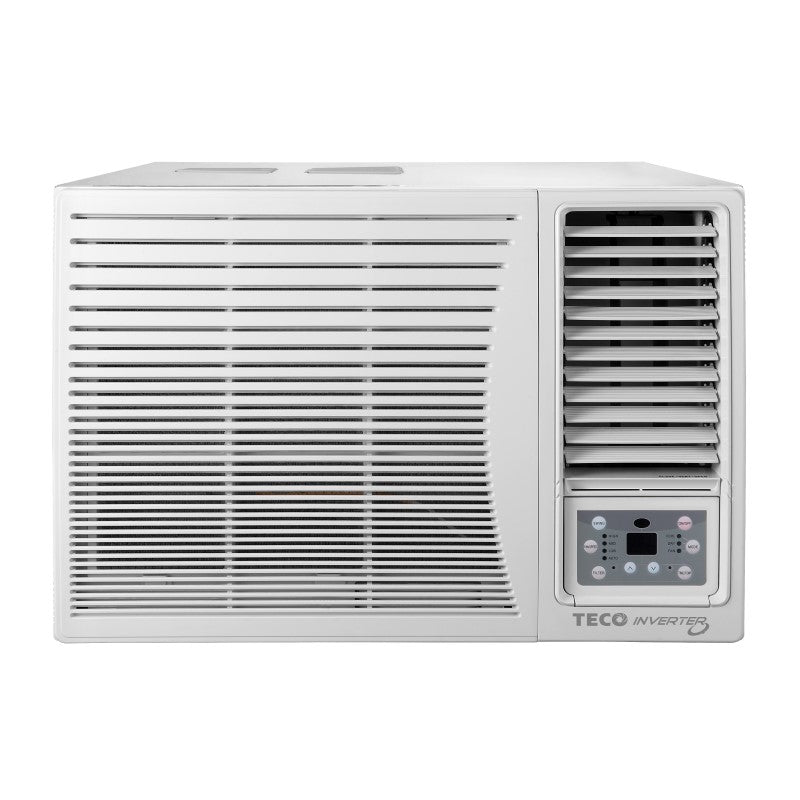

Teco 5.3kW/4.8kW Window Wall Air Conditioner - Inverter Reverse Cycle

Teco 5.3kW/4.8kW Window Wall Air Conditioner - Inverter Reverse Cycle

Model:

TWW53HVAG

Ipn:

835135

1 1
Teco
Teco 5.3kW/4.8kW Window Wall Air Conditioner - Inverter Reverse Cycle

Teco 5.3kW/4.8kW Window Wall Air Conditioner - Inverter Reverse Cycle

Model:

TWW53HVAG

Ipn:

835135

$1,599.00
Was $0.00 $1,599.00
Taxes included.
View full details
You have not set a location
Overview
Delivery & Returns
Payment Options
Back up plans

Overview

description

The Teco 5.3kW/4.8kW Window Wall Air Conditioner with Inverter Reverse Cycle technology delivers efficient year-round comfort. With 5.3kW cooling and 4.8kW heating capacity, it’s ideal for medium to large rooms. The inverter compressor ensures energy-efficient performance with stable temperature control, while customisable timer settings let you schedule cooling and heating to suit your lifestyle. Breathe easier with the Silver Ion Sterilising Filter and high-density filters that remove 99% of bacteria and allergens. Gold Fin Protection adds durability against corrosion, and the included remote control and auto swing function make operation effortless.

specifications

  • Brand
    TECO
  • IPN
    835135
  • Model
    TWW53HVAG
  • Manufacturer's Warranty
    5 Years
  • Size
    5.3kW
  • Width
    660 mm
  • Height
    428 mm
  • Depth
    800 mm
  • Cooling Capacity W
    5300
  • Cooling Capacity Range W
    5300(Rated)/2600(Mid)
  • Cooling Power Input W
    1600
  • Cooling Power Input Range W
    1600(Rated)/700(Mid)
  • Cooling Power Current A
    7
  • Cooling Power Current Range A
    7.0(Rated)/3.4(Mid)
  • Heating Capacity W
    4800
  • Heating Capacity Range W
    4800(Rated)/2450(Mid)
  • Heating Power Input W
    1400
  • Heating Power Input Range W
    1400(Rated)/600(Mid)
  • Heating Power Current A
    6.6
  • Heating Power Current Range A
    6.6(Rated)/3.0(Mid)
  • EER W/W
    3.3125
  • AEER W/W
    3.2827
  • Cooling Star Rating (Hot / Mixed / Cold)
    2.5/2.5/2.5
  • Cooling Energy Consumption (Hot / Mixed / Cold) kWh/year
    1624/544/356
  • COP W
    3.4286
  • ACOP W
    3.3934
  • Heating Star Rating (Hot / Mixed / Cold)
    2/1.5/1.5
  • Heating Energy Consumption (Hot / Mixed / Cold) kWh/year
    118/760/2001
  • Noise (Energy Label – Indoor / Outdoor) dB(A)
    65/69
  • Rated Input (Max) W
    2400
  • Rated Current (Max) A
    10
  • Inactive Energy (Avg) W
    4.3
  • Air Flow Volume(H/M/L) m3/h
    800/700/620
  • Air Flow Volume(H/M/L) L/s
    222/194/172
  • Air Flow Volume(H/M/L) CFM
    471/412/365
  • Dehumidifying Volume L/h
    2.2
  • Dehumidifying Volume Pint/h
    4.65
  • Application Area m2
    23-34
  • Permissible Excessive Operating Pressure for the Discharge Side MPa
    4.3
  • Permissible Excessive Operating Pressure for the Suction Side MPa
    2.5
  • Maximum Allowable Pressure MPa
    4.3
  • Climate Type
    T1
  • Isolation
    I
  • Moisture Protection
    IPX4(outdoor)
  • Evaporater Coil Hydrophilic Coating
    Blue
  • Condensor Coil Hydrophilic Coating
    Gold
  • Stacking layers
    6
  • Refrigerant
    R32
  • Refrigerant Charge kg
    0.9
  • Electronic Control with Remote Controller
    YES
  • Auto
    YES
  • Cooling
    YES
  • Heating
    YES
  • Dehumidify
    YES
  • Sleep
    YES
  • Timer
    YES
  • Auto Swing (Horizontal Auto Swing)
    YES
  • Air Flow
    YES
  • Memory
    YES
  • Auto Fan
    YES
  • Filter Dirty Alarm
    YES
  • Soft Start
    YES
  • Low Voltage Startup
    YES
  • Intelligent Preheating
    YES
  • Auto Restart
    YES
  • Self Diagnosis
    YES
  • Silver Ion Sterilizing Filter
    YES
  • Rated Voltage V
    220-240
  • Rated Frequency Hz
    50
  • Phases
    1
  • Fan Type
    Centrifugal
  • Set Temperature Range C
    16~30
  • Sound Pressure Level (H/M/L) dB (A)
    54/52/50
  • Sound Power Level (H/M/L) dB (A)
    64/62/60
  • Cooling Operation Ambient Temperature Range C
    18~43
  • Heating Operation Ambient Temperature Range C
    -7~24
  • Sound Pressure Level (H/M/L) dB (A)
    61/59/57
  • Sound Power Level (H/M/L) dB (A)
    71/69/67

features

  • 5.3kW Cooling Capacity
  • 4.8kW Heating Capacity
  • Gold Fin Protection
  • High Density Filters
  • Auto Swing Function
  • Electronic Control with Remote
