Vintec Wine Storage Cabinet 148 Bottle

Vintec Wine Storage Cabinet 148 Bottle

Model:

VWM148SBA-L

Ipn:

809797

1 3
Vintec
Save 27%
Vintec Wine Storage Cabinet 148 Bottle

Vintec Wine Storage Cabinet 148 Bottle

Model:

VWM148SBA-L

Ipn:

809797

$2,399.00
Was $3,299.00 $2,399.00
Taxes included.

EOFY Sale - Up to 50% Off!

Save up to 50% on selected products during the EOFY Sale. T&C's apply. Find out more

Offer ends Tue, Jun 30, 2026

View full details
You have not set a location
Overview
Delivery & Returns
Payment Options
Back up plans

Overview

description

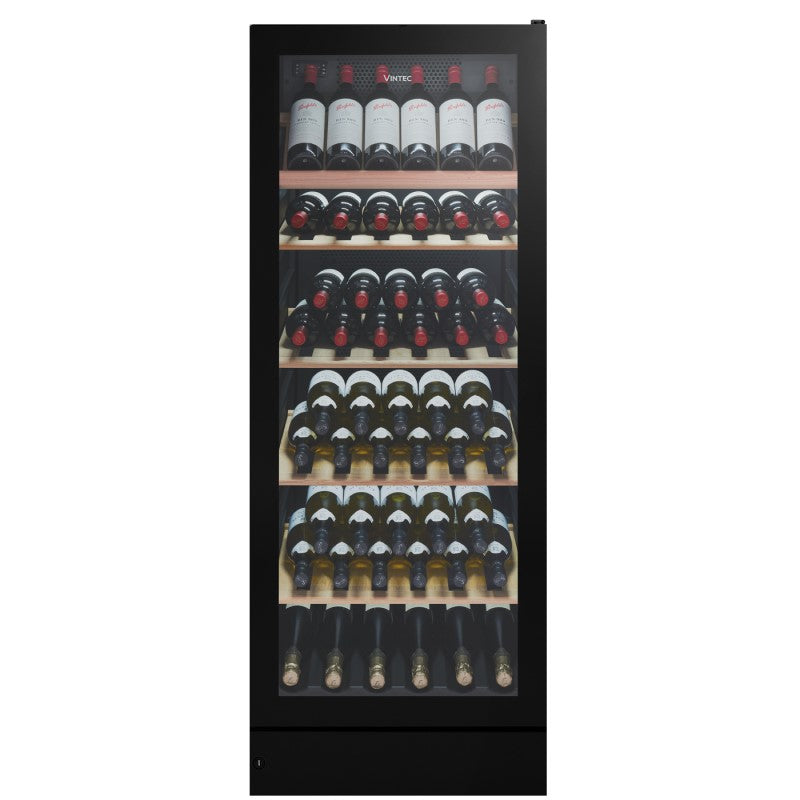

The Vintec 148 Bottle Wine Storage Cabinet is crafted to meet the demands of wine collectors seeking precise climate control and secure storage. Designed to hold up to 148 Bordeaux-style bottles, it features adjustable and repositionable shelving to suit a range of bottle sizes. Anti-UV glass within the double-glazed door helps protect wine from light damage, while the humidity recycling system assists in maintaining ideal cellaring conditions. The LED digital display panel enables easy temperature adjustment and monitoring. For added security, a built-in lock protects valuable collections, and the reversible door provides installation flexibility when fitted by a technician. This cabinet delivers professional storage performance with refined sophistication.

specifications

  • Brand
    Vintec
  • IPN
    809797
  • Model
    VWM148SBA-L
  • Manufacturer's Warranty
    2 Years
  • Size
    148 Bottle
  • Width
    615 mm
  • Height
    1610 mm
  • Depth
    640 mm
  • Colour/Finish
    BLACK
  • Installation Type
    Both
  • Finish
    Borderless Black Glass
  • Door Type
    Glass Door
  • Door Construction
    Double Glazed, UV Treated
  • Handle
    Recessed
  • Fridge door opening
    Left
  • Refrigerant
    R600a
  • Easy Capacity (Bottles)
    80
  • Max Capacity (Bottles)
    148
  • Main Function
    Serve Wide Range of Varietals
  • Alternate Function
    Cellar Reds & Whites
  • No of Zones
    1 or Multi
  • Temperature Range Zone 1 (deg)
    6 - 22 Degrees C
  • Air space at sides (mm)
    30
  • Air space above cabinet (mm)
    50
  • Joinery cut out dimension- minimum height (mm)
    1600
  • Joinery cut out dimension- minimum width (mm)
    615
  • Joinery cut out dimension- minimum depth (mm)
    640
  • Rear Spacer (mm)
    30
  • Power Supply
    240V / 10AMP
  • Electricity Consumption (kWh/Day)
    1
  • Ambient Temperature (deg)
    5-35

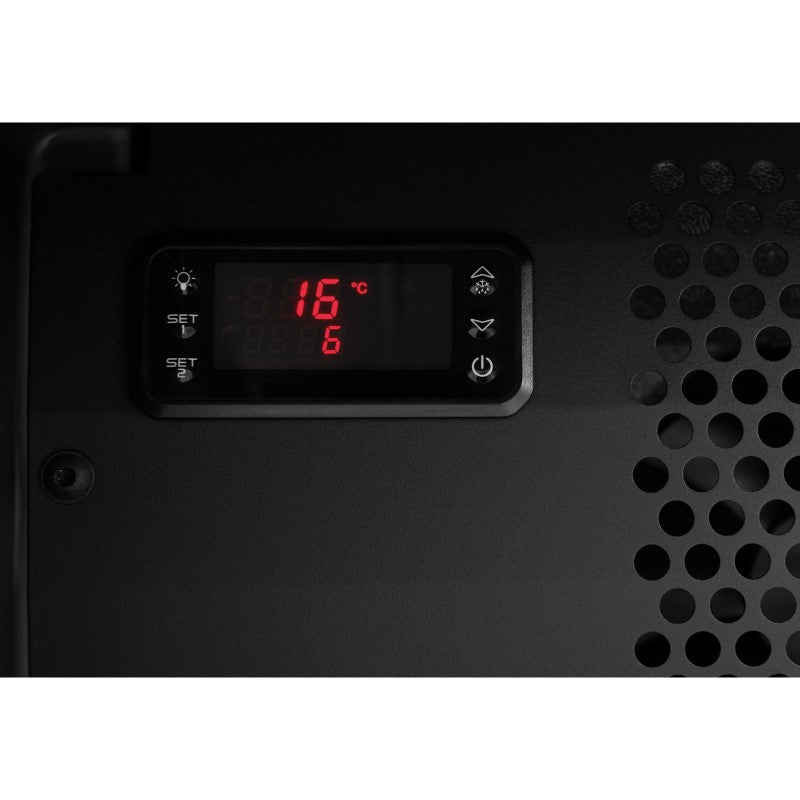

  • Display Panel
    LED Digital Display
  • Castors and Feet
    2 Front Adjustable Feet, 2 Back Castors
  • Internal Heater
    Yes
  • Lock
    Yes
  • Alarm
    Audio & Visual
  • Lighting
    White LED

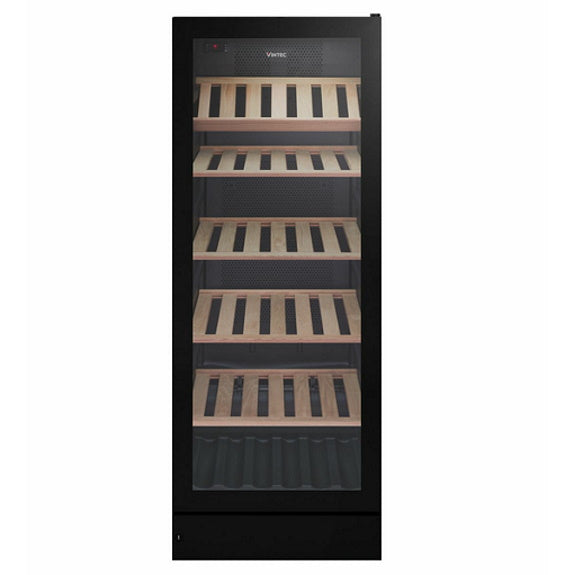

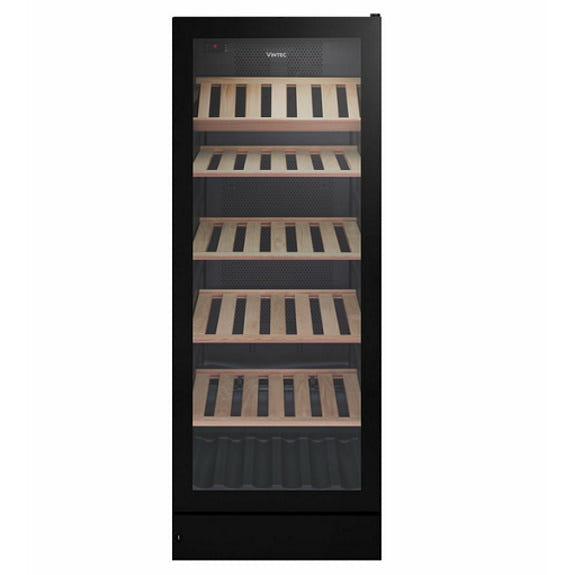

  • Number of Shelves
    5
  • Shelving Material
    Wood
  • Function
    Both

features

  • Multi-Temp
  • Winter Heating Function
  • Stable Temperature
  • UV Protected Dark Storage Area
  • No Vibration
  • Audio and visual alarm
  • LED internal lighting
  • Digital temperature display
  • Adjustable wooden shelves
  • Security lock
  • Double glazed door, with anti-UV glass
  • Winter function heating system
