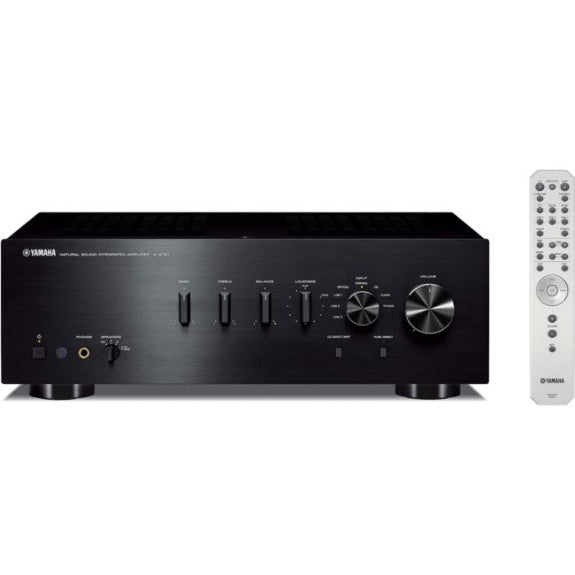

Yamaha 2 Channel Stereo Integrated Amplifier - Black
Yamaha 2 Channel Stereo Integrated Amplifier - Black
Model:
AS701B
Ipn:
663924

Collapsible content
Overview
description
specifications
-
BrandYamaha
-
IPN663924
-
ModelAS701B
-
Manufacturer's Warranty2 Years
-
Size100w
-
Width435 mm
-
Height151 mm
-
Depth387 mm
-
Minimum RMS Output Power (8 ohms, 20 Hz-20 kHz)100 W + 100 W (0.019% THD)
-
Maximum Power (4 ohms, 1kHz, 0.7% THD, for Europe)160 W + 160 W
-
High Dynamic Power/Channel (8/6/4/2 ohms)140/170/220/290 W
-
Damping Factor240
-
Frequency Response10 Hz-100 kHz +/-1.0 dB
-
Total Harmonic Distortion (CD to Sp Out, 20 Hz-20 kHz)0.019% (50 W/8 ohms)
-
Signal-to-Noise Ratio (CD)99dB (input shorted, 200 mV)
-
Audio In / Out8 / 2
-
Digital InputYes (optical / coaxial)
-
Subwoofer OutYes
-
DC outYes
-
Pure DirectYes
-
Standby Power Consumption0.5W
-
Power Management (Auto Power Standby)Yes
-
ToP-ARTYes
-
Switchable CD Direct AmplificationYes
features
- 160W x 2 (max)
- 100W x 2 (RMS) high power output
- ToP-ART (Total Purity Audio Reproduction Technology)
- I/O (input to output) Direct Symmetrical Design
- ART (Anti-Resolution and Tough) Base
- Custom-made power transformer
- 12,000uF block capacitors
- Aluminum-extruded heat sinks
- CD Direct Amplification & Pure Direct
- Continuous Variable Loudness Control
- Gold-plated speaker terminals and RCA terminals
- Digital audio inputs for TV or Blu-ray Player
- Connection for Optional YBA-11 Bluetooth Wireless Adapter
- Simple yet sophisticated design (aluminium front panel and knobs)
- Auto Power Standby
